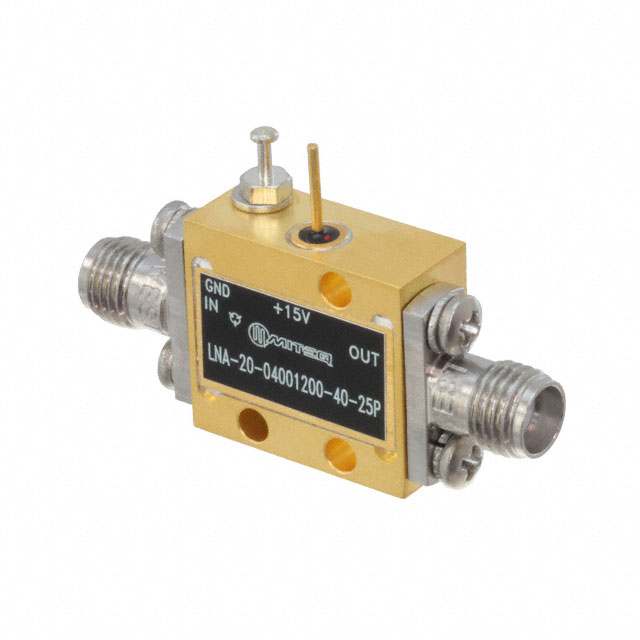

LNA-20-04001200-40-25P
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC RF AMP VSAT 4GHZ-12GHZ MODULE
- Series：LNA
- Mfr：L3 Narda-MITEQ
- Package：Box
- Frequency：4GHz ~ 12GHz
- P1dB：25dBm
- Gain：20dB
- Noise Figure：4dB
- RF Type：VSAT
- Voltage - Supply：15V
- Current - Supply：450mA
- Test Frequency：4GHz ~ 12GHz
- Mounting Type：Connector Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
Download product information
Overview
The LNA-20-04001200-40-25P is a low-noise amplifier module from the Narda-MITEQ LNA series, designed for VSAT applications. It operates within a frequency range of 4 GHz to 12 GHz. The device provides a gain of 20 dB and achieves a noise figure of 4 dB. It delivers a P1dB output power of 25 dBm. The unit requires a 15 V power supply with a current consumption of 550 mA. The component is housed in a module package equipped with SMA connectors.
Feature Summary
- Provides low-noise amplification suitable for satellite communication systems
- Operates as a dedicated module with integrated SMA interfaces
- Engineered for high linearity performance in VSAT environments
Applications
- VSAT uplink and downlink signal conditioning
- Satellite communication receiver front-ends
- Microwave radio relay systems
Procurement Notes
Verify the specific part number against official Narda-MITEQ documentation to confirm electrical parameters and mechanical dimensions. Ensure that the required 15 V power supply and SMA connector compatibility match the system design requirements before procurement. Cross-reference the manufacturer's latest datasheet for any updates on pinout or thermal specifications.
Selection Notes
Select this model when a 4 GHz to 12 GHz bandwidth is required with a target noise figure of 4 dB and 25 dBm output power. Consider the 550 mA current draw and 15 V supply voltage constraints during power budgeting. Compare against other LNA-20 series variants if different frequency ranges or gain levels are needed for the specific application.
Part Context
This component belongs to the Narda-MITEQ LNA series, which offers various low-noise amplifier modules for microwave and RF applications. The brand specializes in robust components for military and commercial use, including attenuators, switches, and mixers. This specific model addresses the need for reliable amplification in satellite communication infrastructure.
Replacement Considerations
Consult official Narda-MITEQ resources for confirmed substitute part numbers. Other models in the LNA-20 series may offer alternative frequency ranges or performance metrics. Verify compatibility with existing system interfaces and power supplies before considering any cross-references.
