LNA-30-06001800-25-15P

RF Amplifiers Overview

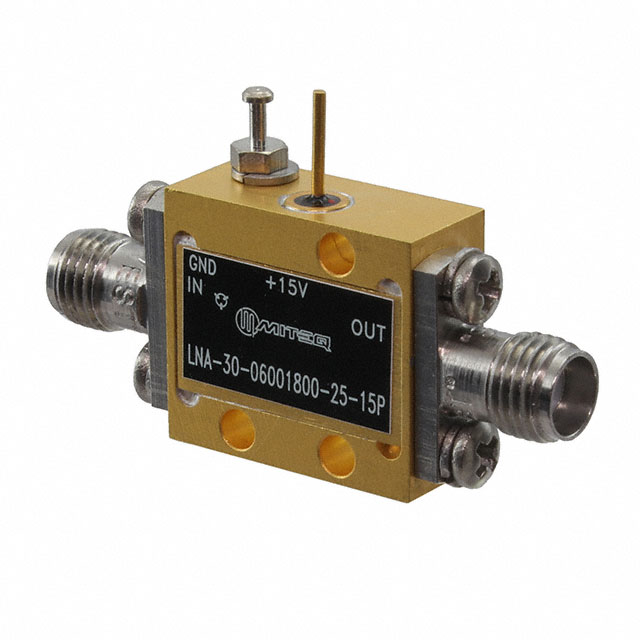

The LNA-30-06001800-25-15P is a low-noise amplifier from the L3 Narda-MITEQ LNA series, designed for VSAT applications. It operates within a frequency range of 6 GHz to 18 GHz. The device provides a minimum gain of 30 dB with a typical noise figure of 2.5 dB. It delivers a P1dB output power of 15 dBm. The unit requires a supply voltage of 15 V and draws approximately 350 mA. It features a module package with SMA connectors and maintains a 50 Ω impedance.

RF Amplifiers Feature Summary

• Provides high gain and low noise performance for sensitive RF signal amplification
• Engineered specifically for VSAT system integration requirements
• Features standard 50 Ohm input and output impedance matching

RF Amplifiers Applications

• VSAT satellite communication ground station receivers
• Microwave radio link front-end amplification
• Test and measurement instrumentation signal conditioning

RF Amplifiers Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pinout and connector type compatibility. Ensure the supply voltage and current draw align with the system power budget. Confirm RoHS compliance status if required by project specifications. Check for any recent design changes or obsolescence notices from the manufacturer before final procurement.

RF Amplifiers Selection Notes

Select this component when operating frequencies fall between 6 GHz and 18 GHz. Choose based on the requirement for 30 dB gain and 2.5 dB noise figure. Consider the 15 VDC supply constraint and 350 mA current consumption. Evaluate thermal management needs for the module package in the intended enclosure environment.

RF Amplifiers Part Context

This part belongs to the LNA series from L3 Narda-MITEQ, a provider of microwave and RF components. The company specializes in high-reliability amplifiers, attenuators, and switches for military and commercial applications. This specific model targets the C-band through K-band spectrum for satellite communications.

RF Amplifiers Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that alternative parts match the 6-18 GHz frequency range, 30 dB gain, and 15 dBm output power. Ensure interface compatibility and electrical parameter equivalence before substitution.
