LTST-S321TBKT

LED Indication - Discrete Overview

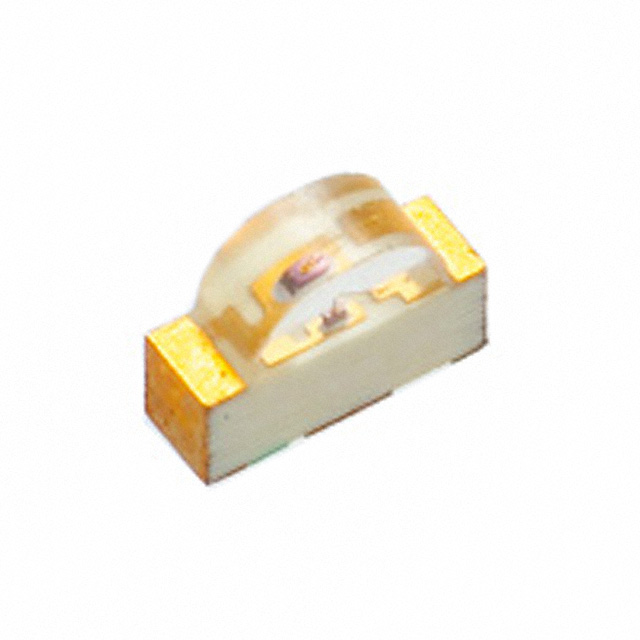

The LTST-S321TBKT is a single-color blue surface-mount LED manufactured by Lite-On Inc. It features a right-angle package design with dimensions of 3.00mm length, 2.00mm width, and a maximum height of 1.00mm. The component emits light at a peak wavelength of 468nm and a dominant wavelength of 470nm. Typical forward voltage is 3.3V at a test current of 20mA. Optical performance includes a viewing angle of 130 degrees and a typical luminous intensity of 104mcd. The lens is colorless, water-clear, and rectangular with a domed shape.

LED Indication - Discrete Feature Summary

• Right-angle SMD configuration for vertical PCB mounting
• High-intensity blue emission with wide viewing angle
• RoHS compliant construction

LED Indication - Discrete Applications

• Electronic device status indicators
• Instrument panel illumination
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'TBKT' against the manufacturer's official datasheet to confirm exact optical binning and packaging specifications. Ensure compatibility with standard reflow soldering profiles for 2-SMD right-angle packages. Confirm moisture sensitivity level (MSL 3) handling requirements during storage and assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a vertical orientation is required for space-constrained designs. The 130-degree viewing angle provides broad visibility compared to narrow-beam alternatives. Verify that the 3.3V forward voltage aligns with the driving circuit's output capabilities.

LED Indication - Discrete Part Context

This part belongs to the LTST-S321 series of single-color LEDs from Lite-On. The series offers various colors and lens styles in a standardized 1208 metric footprint. The TBKT suffix denotes specific optical and packaging attributes within this family.

LED Indication - Discrete Replacement Considerations

Cross-reference with other Lite-On SMD blue LEDs such as LTST-C21TBKT for similar form factors. Verify pinout compatibility and thermal characteristics before substituting with components from other manufacturers.
