LY Y8SF-U1V2-36-0-20-R18-Z

LED Indication - Discrete Overview

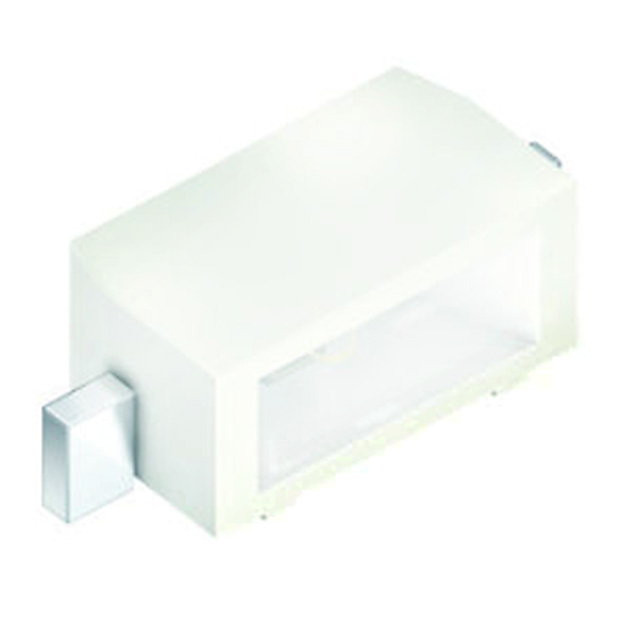

The LY Y8SF-U1V2-36-0-20-R18-Z is a yellow single-color LED from the Micro SIDELED series by ams OSRAM. It operates at a forward voltage of 2.2 V with a peak wavelength of 590 nm. The component features a rectangular, colorless lens measuring 1.5 mm x 1 mm and emits 355 mcd of light intensity. Designed for surface mount technology (SMD), it utilizes two flat leads in a 2-SMD package configuration.

LED Indication - Discrete Feature Summary

• Yellow emission with 590 nm peak wavelength
• Micro SIDELED series compact design
• Surface mount construction with flat leads

LED Indication - Discrete Applications

• General electronic device indication
• Status signaling in consumer electronics
• Panel indicator applications

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct binning and packaging specifications. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Cross-reference the part number against current distributor availability lists to validate active supply chain status and lead time requirements.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a low-profile yellow indicator light. The 2.2 V forward voltage aligns with standard logic-level driving circuits. Ensure PCB footprint matches the 2-SMD flat lead dimensions. Consider thermal management requirements based on the specified operating temperature range during circuit design.

LED Indication - Discrete Part Context

This part belongs to the Micro SIDELED family, characterized by small form factors suitable for dense PCB layouts. It serves as a discrete indicator solution within ams OSRAM's broader portfolio of photonics products. The series emphasizes reliability and consistent optical performance for mass-produced electronic assemblies.

LED Indication - Discrete Replacement Considerations

Direct substitutes include LR Y8SF-U1V2-1 for red variants or other Micro SIDELED models with matching mechanical dimensions. Verify electrical parameters such as forward voltage and luminous intensity before swapping components to maintain system brightness and power consumption targets.
