M22-2010905

Headers, Male Pins Overview

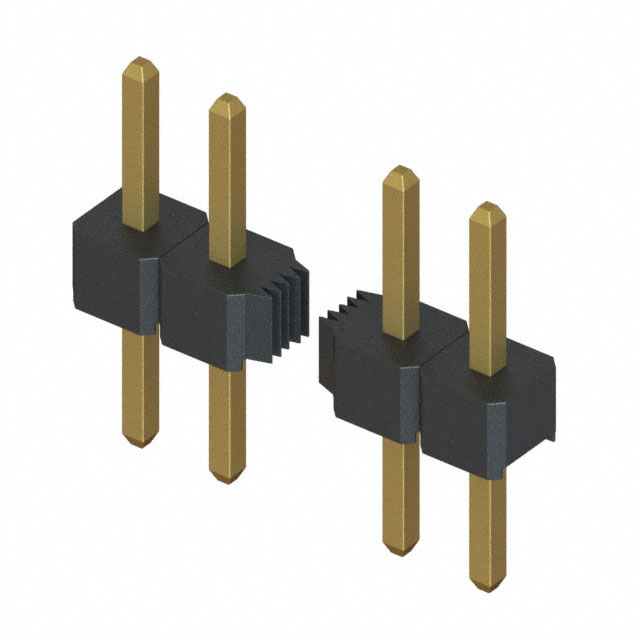

The M22-2010905 is a vertical through-hole pin header from the Harwin M22 series, featuring 9 positions with a 2.00 mm pitch. It utilizes phosphor bronze contacts with gold plating for reliable signal transmission. The connector supports board-to-board applications and operates within a temperature range of -40°C to 105°C. Rated at 1A per contact and 500V, it employs a push-pull locking mechanism. The housing is made of black PA6T nylon with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for secure PCB integration
• Push-pull locking mechanism ensures stable connection integrity
• Gold-plated phosphor bronze contacts provide corrosion resistance
• Unshrouded design allows for flexible mating configurations

Headers, Male Pins Applications

• Board-to-board interconnect systems
• Industrial control module connections
• Consumer electronics internal wiring
• Automotive electronic sub-systems

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2010905 against official Harwin documentation to confirm current availability and lead times. Ensure compatibility with mating sockets in the same M22 series. Check for RoHS3 compliance requirements relevant to your region. Confirm that the vertical orientation matches your PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, unshrouded header with nine positions is required. The 2.00 mm pitch suits dense circuit layouts. Consider the 1A current rating and 500V voltage limit for electrical safety. The push-pull feature aids in manual assembly or maintenance where vibration resistance is critical. Verify thermal performance within the specified operating range.

Headers, Male Pins Part Context

This part belongs to the M22 series of rectangular connectors designed by Harwin Inc. The series offers various configurations including straight and right-angle headers. The M22-2010905 specifically denotes a vertical, single-row, unshrouded pin header. It is part of a broader ecosystem of compatible sockets and accessories available from the manufacturer.

Headers, Male Pins Replacement Considerations

Direct substitutes include other M22 series headers with identical pin counts and pitch. Verify mechanical dimensions and locking mechanisms match existing designs. Cross-reference with Harwin's official replacement guide for discontinued variants if applicable.
