M22-2200346

Headers, Male Pins Overview

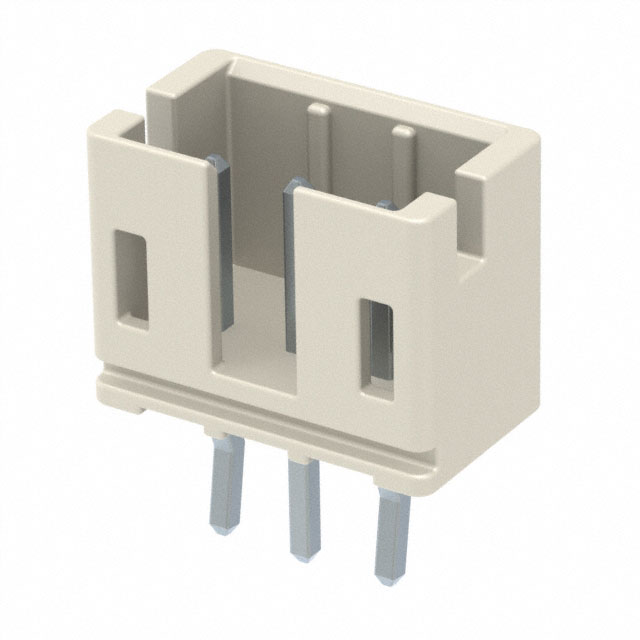

The Harwin M22-2200346 is a vertical board header within the M22 series, featuring a 2.00mm pitch and three positions. Designed for board-to-cable or wire connections, it utilizes shrouded housing with four walls to ensure proper alignment and protection. The connector employs kinked pin termination for secure soldering to the PCB. It supports standard through-hole mounting and is constructed from durable materials suitable for general electronic interconnect applications requiring reliable signal transmission.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates compact board-to-cable integration
• Four-wall shrouding ensures precise mating and pin protection
• Kinked pin design provides robust mechanical retention during soldering

Headers, Male Pins Applications

• Board-to-cable interconnects in consumer electronics
• Wire harness connections in industrial control modules
• Internal power and signal routing in compact devices

Headers, Male Pins Procurement Notes

Verify the specific suffix code against the manufacturer's current datasheet to confirm terminal type and plating specifications. Ensure the selected variant matches the required shrouding style and pitch tolerance for your PCB layout. Cross-reference the RoHS compliance status with your project's environmental regulations before finalizing the order.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header is required for low-pin-count cable connections. The 2.00mm pitch suits dense layouts, while the kinked pin offers superior hold force compared to straight pins. Consider the three-position limit and verify that the voltage and current ratings meet the circuit requirements.

Headers, Male Pins Part Context

Part of the M22 rectangular connector family, known for its versatile pin configurations and reliable performance. This specific model represents a standard vertical header option, distinct from right-angle or surface-mount variants within the same series.
