M22-2210846

Headers, Male Pins Overview

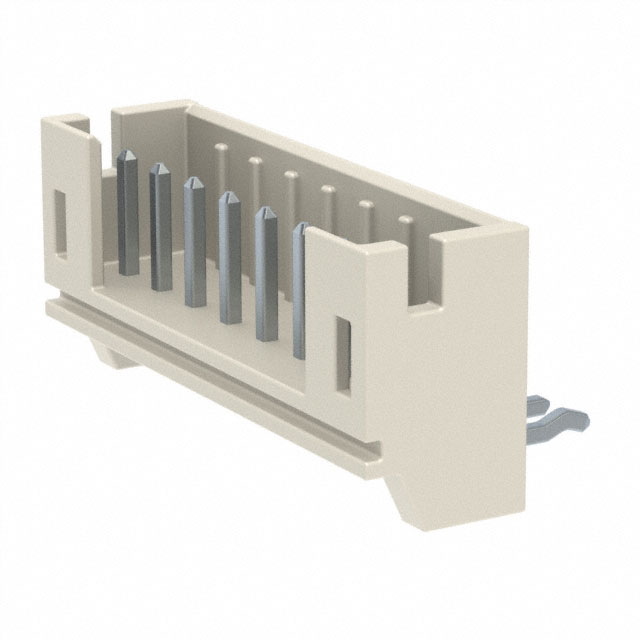

The M22-2210846 is a single-row male pin header connector from the Harwin M22 series, designed for board-to-cable or board-to-wire applications. It features a 2mm (0.079 inch) pitch and an 8-position configuration with kinked pins for secure retention. The connector utilizes a solder termination method and operates within a temperature range of -40°C to +105°C. Rated at 100V with a current capacity of 2A per contact, it employs phosphor bronze contacts with gold plating. The housing is constructed from polyamide (PA6T) nylon, meeting UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row design with kinked pins for enhanced mechanical retention in board-to-cable connections
• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance
• High-temperature polyamide insulation housing rated UL 94 V-0 for safety compliance

Headers, Male Pins Applications

• Board-to-cable interconnections
• Board-to-wire assemblies
• Compact electronic device internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm pin style and plating specifications. Ensure compatibility with mating cable harnesses regarding voltage ratings and current loads. Confirm that the kinked pin variant matches the intended mechanical retention requirements for the assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle header with secure pin retention is required for low-voltage applications. The 2mm pitch suits dense layouts, while the 2A rating supports moderate current needs. Consider the kinked pin feature if vibration resistance is critical for the cable connection.

Headers, Male Pins Part Context

Part of the M22 series, which offers versatile rectangular connectors for various interconnect needs. This model specifically addresses compact board-to-cable scenarios requiring robust mechanical locking through its unique pin design.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific kinked pin variant. Evaluate other M22 series headers for similar pitch and row count, but verify pin style differences carefully.
