M22-2510946

Headers, Male Pins Overview

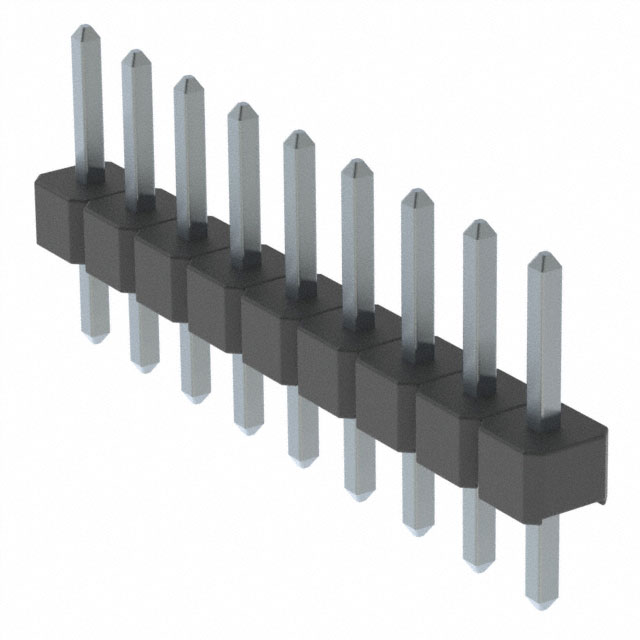

The M22-2510946 is a vertical pin header connector manufactured by Harwin Inc., designed for through-hole termination. It features a 9-position configuration with a 2mm (0.079 inch) mating pitch and single-row layout. The contacts are gold-plated phosphor bronze pins, rated for 1A per contact. The housing is constructed from black nylon (PA6T), offering UL94 V-0 flammability rating and an operating temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board or cable connection style with push-pull locking mechanism
• Gold-plated square contact terminals ensuring reliable signal transmission
• Cuttable design allows for flexible circuit board integration

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Consumer electronics utilizing compact PCB layouts
• Automotive electronic modules needing high-temperature stability

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and housing color variants. Ensure compatibility with mating socket series such as M22-63x1042. Confirm RoHS compliance status against current manufacturing revisions. Check for obsolescence notifications prior to finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header is required for space-constrained designs. The 2mm pitch offers a balance between density and ease of assembly. Consider the cuttable feature if custom row lengths are necessary. Validate thermal requirements against the 105°C maximum operating limit.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, a family of rectangular connectors known for their compact size and high reliability. The M22 series supports various configurations including headers, sockets, and wire housings. This specific model represents a standard vertical header variant within that ecosystem.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Evaluate other Harwin M22 series headers with matching 2mm pitch and 9 positions for potential functional equivalence.
