M22-2530246

Headers, Male Pins Overview

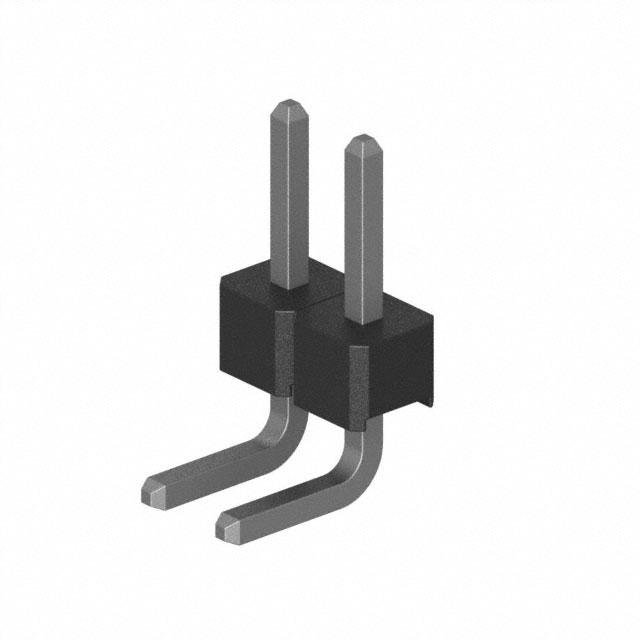

The M22-2530246 is a 2-position single-row pin header assembly from the Harwin M22 series. It features a 2.00mm pitch and horizontal surface-mount configuration with tin-plated contacts. Designed for PCB integration, this component utilizes a PC tail termination method suitable for automated assembly processes.

Headers, Male Pins Feature Summary

• Horizontal surface-mount design for direct PCB integration
• Single-row configuration with two contact positions
• Tin-plated contacts for reliable electrical connection

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Signal routing in compact electronic assemblies
• Prototype development requiring low-profile headers

Headers, Male Pins Procurement Notes

Verify component obsolescence status prior to procurement as the M22-2530246 may be discontinued. Confirm availability through authorized distributors or check for active replacement part numbers. Ensure that any substitute components maintain identical mechanical dimensions and electrical specifications to guarantee compatibility with existing designs.

Headers, Male Pins Selection Notes

Select this component when a low-profile, horizontal surface-mount header is required for space-constrained applications. The 2.00mm pitch allows for dense circuit layouts. Verify that the target PCB footprint matches the specific mounting style and terminal configuration of the M22 series to ensure proper solder joint formation and mechanical stability.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which provides 2.00mm pitch connector solutions. The series includes various configurations for both pin headers and socket systems, designed to meet modern electronics manufacturing standards for size and performance in compact form factors.
