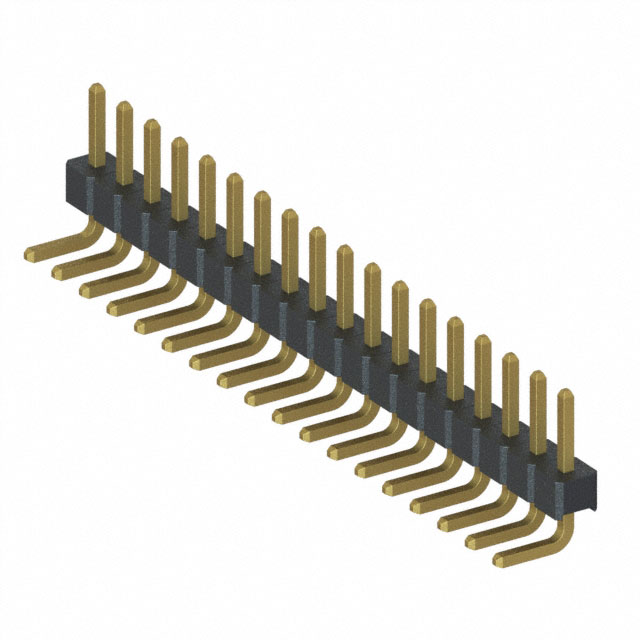

M22-2531805

M22-2531805 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 18POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2531805

• Description：CONN HEADER R/A 18POS 2MM
• Series：M22
• Mfr：Harwin Inc.
• Package：Bulk
• Connector Type：Header, Cuttable
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：18
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.138" (3.50mm)
• Contact Length - Post：0.094" (2.40mm)
• Overall Contact Length：-
• Insulation Height：0.079" (2.00mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：-
• Contact Material：Phosphor Bronze
• Insulation Material：Polyamide (PA6T), Nylon 6T
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2531805
