M22-2540305

Headers, Male Pins Overview

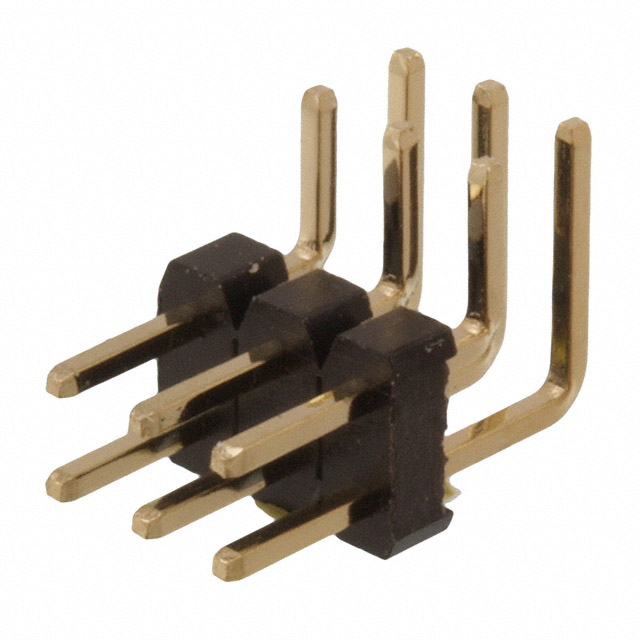

The M22-2540305 is a male header connector from the Harwin M22 series, designed for board-to-board applications. It features a 6-position (3+3) configuration with a 2.00mm pitch across two rows. The component utilizes through-hole right-angle termination and square pin contacts with gold plating. Constructed with phosphor bronze contacts and PA6T insulation, it supports a rated current of 1A per contact and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting for compact board integration
• Gold-plated phosphor bronze contacts for reliable conductivity
• PA6T insulation material ensuring UL94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Compact circuit board layouts requiring right-angle routing
• Industrial control systems operating in varied thermal environments

Headers, Male Pins Procurement Notes

Verify the specific suffix designation against official Harwin documentation to confirm exact pin count and termination style. Ensure compatibility with mating socket connectors regarding pitch and row alignment. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle male header is required for double-row connections. The 2.00mm pitch allows for dense pin arrangements while maintaining adequate spacing. Consider the 1A current rating and 105°C maximum operating temperature to ensure suitability for the target application's electrical and thermal loads.

Headers, Male Pins Part Context

This part belongs to the M22 series of rectangular connectors by Harwin Inc., which offers various configurations for board-to-board and cable-to-board connections. The series is characterized by its robust construction and standardized 2.00mm pitch options, catering to diverse industrial and commercial electronics needs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 6-position, 2-row, right-angle, 2.00mm pitch specifications. Verify that alternative components maintain identical contact materials, insulation ratings, and mounting styles to ensure mechanical and electrical compatibility.
