M22-2580305

Headers, Male Pins Overview

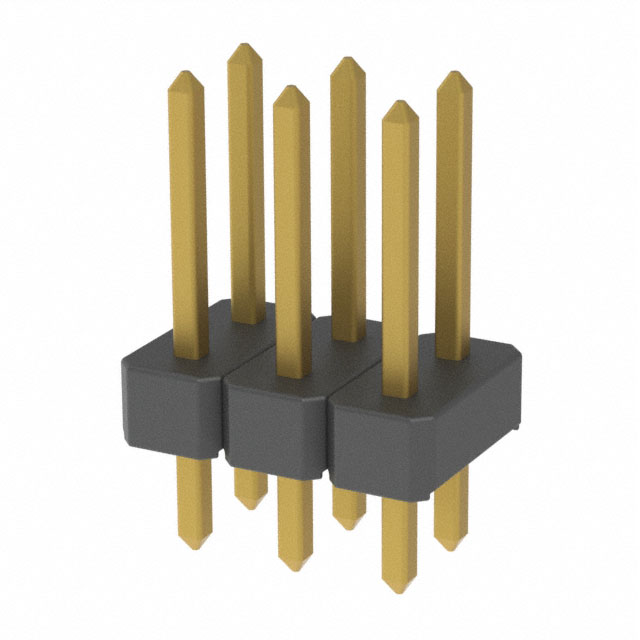

The M22-2580305 is a vertical pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2 mm pitch and contains 6 contacts arranged in a dual-row configuration. The connector utilizes through-hole termination for secure PCB mounting. Contacts are made of phosphor bronze with gold plating to ensure reliable signal transmission. The housing is constructed from black polyamide (PA6T) nylon, rated UL94 V-0 for flammability. It operates within a temperature range of -40°C to 105°C and supports a current rating of 1A per contact.

Headers, Male Pins Feature Summary

• Dual-row vertical pin header design for compact board-to-board interconnection
• Gold-plated phosphor bronze contacts ensure durable electrical performance
• UL94 V-0 rated black PA6T nylon insulation provides thermal stability
• Through-hole termination offers robust mechanical fixation on printed circuit boards

Headers, Male Pins Applications

• High-density electronic module assembly
• Industrial control system interconnects
• Consumer electronics internal connections
• Automotive embedded systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact count and row configuration. Ensure compatibility with mating receptacles sharing the same 2 mm pitch and locking mechanism. Check for RoHS compliance requirements relevant to your target market regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when space constraints require a low-profile, dual-row header with a 2 mm pitch. It is suitable for applications needing through-hole mounting stability and gold-plated contacts for corrosion resistance. Consider the 1A current rating and 105°C maximum operating temperature to ensure it meets the thermal and electrical demands of the specific circuit design.

Headers, Male Pins Part Context

This connector belongs to the M22 series, which is characterized by its small form factor and high reliability. The series is widely used in industries requiring dense interconnections. The M22-2580305 specifically represents a 6-position variant, offering a balance between connectivity density and physical footprint for standard PCB layouts.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
