M22-2741205

Headers, Male Pins Overview

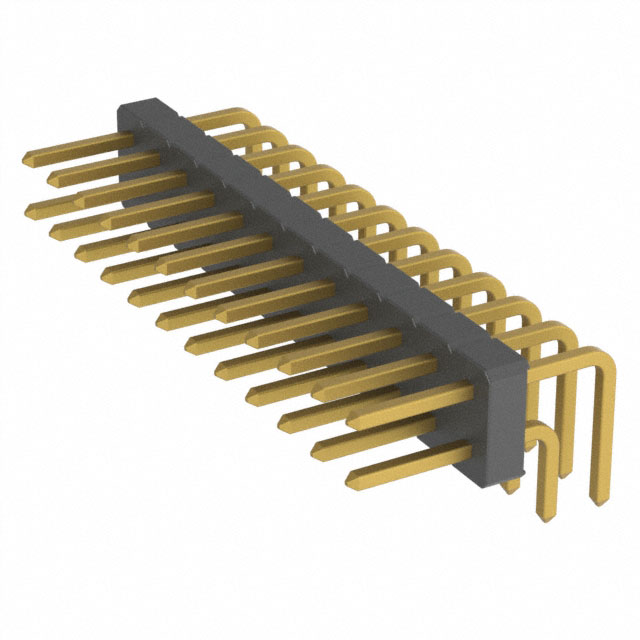

The M22-2741205 is a male pin header connector from the Harwin M22 series, designed for through-hole right-angle board-to-board applications. It features a 2mm pitch and a 24-position configuration arranged in two rows. The contacts are constructed from brass with gold plating to ensure reliable electrical performance. The housing utilizes high-temperature resistant materials suitable for surface mount thermal profiles. This component supports a rated current of 1A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design facilitates compact PCB layout integration.
• Gold-plated brass contacts provide durable electrical connections with low resistance.
• High-temperature resistant insulation material withstands standard reflow soldering processes.

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Signal routing in compact electronic modules requiring right-angle orientation
• Internal connectivity within devices adhering to strict height constraints

Headers, Male Pins Procurement Notes

Verify the obsolete status of this specific part number before initiating procurement. Confirm availability of equivalent active replacements or last-time buys through authorized distributors. Ensure that any substitute components match the original mechanical dimensions, pin count, and electrical ratings to maintain system compatibility.

Headers, Male Pins Selection Notes

Select this component only if right-angle through-hole termination is required for the 24-position interface. Evaluate space limitations on the PCB to accommodate the vertical profile of the right-angle header. Consider alternative surface-mount variants if lower profile or automated assembly efficiency is prioritized over the mechanical stability provided by through-hole pins.

Headers, Male Pins Part Context

This connector belongs to the M22 series, which is characterized by a 2mm pitch and robust construction for industrial environments. The series offers various configurations including straight and right-angle options in both surface mount and through-hole formats. The M22-2741205 specifically addresses needs for dense, reliable interconnects in constrained spaces.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers: None available. The manufacturer has discontinued this item. Engineers must identify compatible alternatives based on matching pitch, position count, and mounting style specifications.
