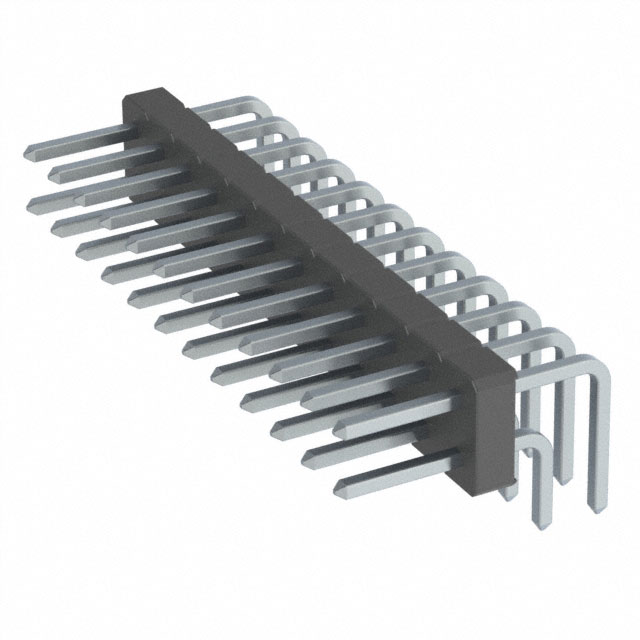

M22-2741246

Description：CONN HEADER R/A 24POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:667343517d80 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2741246 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 24POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2741246

Description：CONN HEADER R/A 24POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2741246

M22-2741246

Headers, Male Pins Overview

The Harwin M22-2741246 is a double-row, horizontal pin header from the M22 series. It features a 2 mm pitch and provides 24 positions (12+12). The connector utilizes tin-plated phosphor bronze contacts housed in black nylon. Designed for right-angle surface mounting, it supports a current rating of 1 A and withstands voltages up to 650 VAC. The unit operates within a temperature range of -40°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Double-row configuration with jackscrew fixing mechanism
High-temperature resistant housing material
Horizontal orientation for space-efficient PCB integration

Headers, Male Pins Applications

Board-to-board interconnections
Industrial control systems
Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific contact plating and housing material against the official datasheet before procurement. Confirm that the jackscrew fixing variant matches the design requirements. Ensure the component complies with RoHS directives relevant to the target market. Cross-reference the manufacturer part number to avoid confusion with similar single-row or socket assemblies.

Headers, Male Pins Selection Notes

Select this component when a robust, high-density connection is required for board-to-board applications. The horizontal profile suits designs with strict height limitations. Verify that the 2 mm pitch aligns with existing PCB footprint constraints. Consider the operating temperature range to ensure reliability under thermal stress conditions.

Headers, Male Pins Part Context

This part belongs to the M22 series, which offers industrial-grade connectors designed for high density. The series includes various configurations such as single-row, double-row, and socket assemblies. These connectors are engineered to meet demanding environmental standards while maintaining compact form factors suitable for modern electronic equipment.
