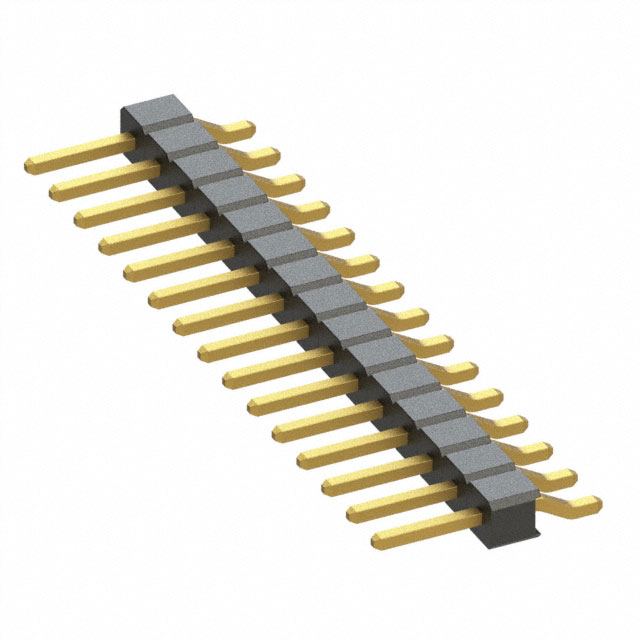

M22-5331505

Description：CONN HEADER SMD R/A 15POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:49418dc3e65f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-5331505 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD R/A 15POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-5331505

Description：CONN HEADER SMD R/A 15POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：15
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-5331505

M22-5331505

Headers, Male Pins Overview

The M22-5331505 is a surface-mount header connector from the Harwin M22 series, designed for board-to-board applications. It features a right-angle configuration with 15 positions and a 2mm pitch. The connector utilizes gold-plated phosphor bronze contacts housed in a black insulator rated UL94 V-0. It supports a working temperature range of -40°C to 105°C and offers a current rating of 1A per contact.

Headers, Male Pins Feature Summary

Right-angle surface-mount design for compact PCB integration
Gold-plated phosphor bronze contacts ensure reliable conductivity
UL94 V-0 rated black polyamide insulation for flame resistance

Headers, Male Pins Applications

Board-to-board interconnections
Compact electronic assemblies requiring right-angle routing
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact pin count and orientation. Ensure compatibility with mating socket connectors within the same M22 series family. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface-mount header is required for space-constrained designs. The 2mm pitch allows for dense circuit layouts while maintaining adequate spacing. Verify that the PCB footprint matches the specified SMD dimensions and that the mating connector aligns with the 15-position requirement.

Headers, Male Pins Part Context

This part belongs to the M22 series, a modular connector system by Harwin Inc. known for its versatility in various industrial and commercial applications. The series offers multiple configurations including vertical, right-angle, and cable mount options, providing engineers with flexible interconnection solutions.
