M2GL050TS-FGG896

Field Programmable Gate Array Overview

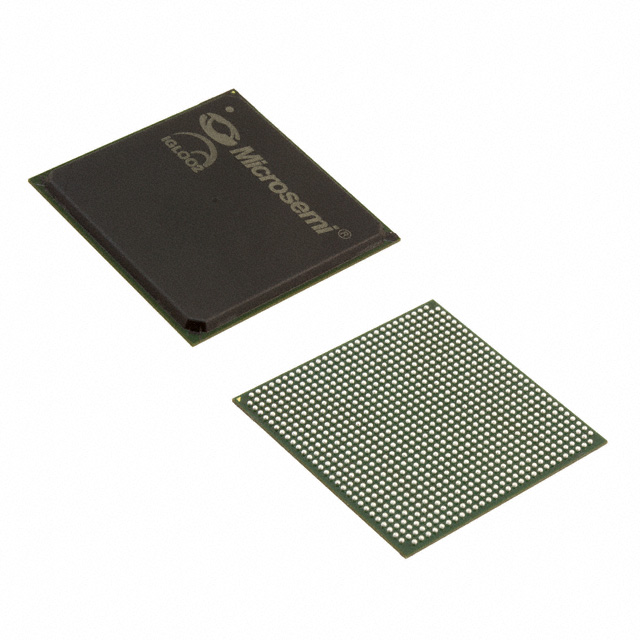

The M2GL050TS-FGG896 is an IGLOO2 FPGA from Microchip Technology, featuring 56,340 logic elements and 1,869,824 bits of embedded RAM. It utilizes a 896-FBGA package with 377 I/Os. The device operates on a core voltage of 1.14V to 1.26V and supports industrial temperatures from -40°C to 100°C. It includes four SerDes transceivers and integrates high-performance memory subsystems with on-chip flash.

Field Programmable Gate Array Feature Summary

• Integrates low-power flash technology for non-volatile configuration storage.
• Includes multiple DMA controllers and a high-performance memory subsystem.
• Features integrated hard DDR3 memory controllers with error correction capabilities.

Field Programmable Gate Array Applications

• Industrial automation systems requiring secure programmable logic.
• High-speed serial communication interfaces utilizing SerDes lanes.
• Embedded applications needing on-chip flash and SRAM integration.

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'TS' indicates data security density features as defined in the official datasheet. Confirm the package type matches the 896-FBGA footprint requirements for your PCB layout. Ensure the industrial temperature grade aligns with your system's thermal environment specifications before ordering.

Field Programmable Gate Array Selection Notes

Select this model for designs requiring approximately 56K logic elements and significant embedded memory resources. Consider the 896-FBGA package size constraints during mechanical design. Verify that the required I/O standards are supported by the MSIO, MSIOD, or DDRIO banks available on this specific device variant.

Field Programmable Gate Array Part Context

This component belongs to the IGLOO2 family, which combines FPGA fabric with integrated math blocks and SerDes interfaces. It shares architectural similarities with SmartFusion2 but lacks the microcontroller subsystem, focusing instead on high-performance logic and memory management for secure, low-power applications.

Field Programmable Gate Array Replacement Considerations

M2GL050T-1FGG896I

Field Programmable Gate Array FAQ

What is the maximum junction temperature for the industrial grade version?

The recommended operating junction temperature for the industrial grade version extends up to 100°C.

How many SerDes transceivers are included in this device?

The M2GL050TS-FGG896 integrates four high-performance SerDes communication interface lanes.

Does this device support DDR3 memory interfaces?

Yes, the device integrates hard DDR3 memory controllers with error correction capabilities.
