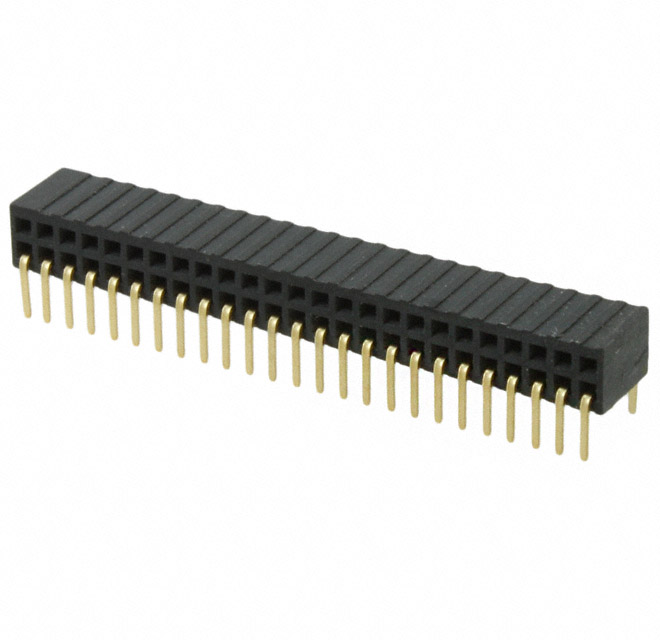

M50-3202545

Description：CONN RCPT 50P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:525243afeeff Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3202545 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 50P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3202545

Description：CONN RCPT 50P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：50
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3202545

M50-3202545

Headers, Receptacles, Female Sockets Overview

The M50-3202545 is a 50-position dual in-line (DIL) socket assembly from the Harwin Archer M50 series. It features a 1.27 mm pitch and two rows of contacts designed for through-hole mounting with a right-angle orientation. The connector utilizes gold-plated phosphor bronze contacts housed in a black liquid crystal polymer (LCP) body, ensuring reliable performance across an operating temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

Right-angle through-hole mounting configuration for space-efficient board layouts
Gold-plated phosphor bronze contacts ensure durable signal integrity
High-temperature resistant LCP housing supports demanding thermal environments

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnections requiring right-angle routing
Wire-to-board connections in compact electronic assemblies
Industrial control systems operating within extended temperature ranges

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm the exact contact count, row configuration, and termination style. Ensure the right-angle orientation matches the target PCB footprint requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle female socket connection is required for high-density applications. The 1.27 mm pitch allows for compact designs, while the LCP material provides necessary thermal stability for soldering processes and operational heat.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M50 series, which offers various configurations including shrouded headers and sockets. The M50-3202545 specifically represents the unshrouded right-angle socket variant, distinct from straight-mount or shrouded versions within the same product family.
