M50-3530642

Headers, Male Pins Overview

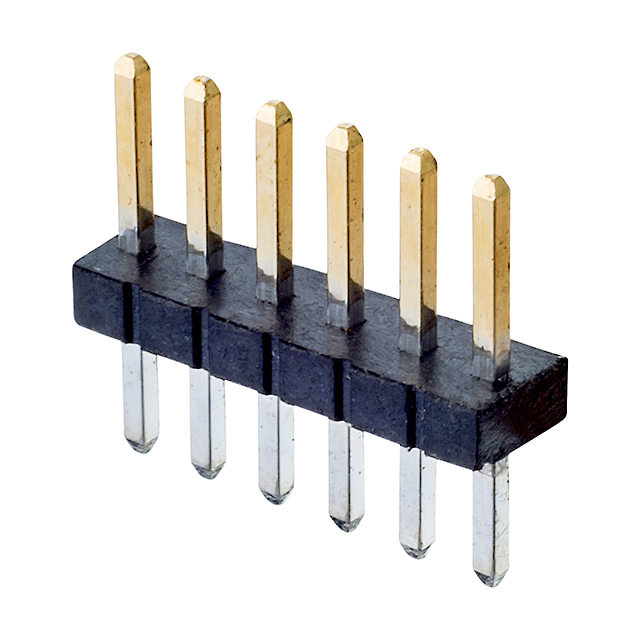

The Harwin M50-3530642 is a single-row, vertical pin header from the Archer M50 series. It features a 1.27 mm pitch and six contacts designed for through-hole board-to-board connections. The connector utilizes gold-plated phosphor bronze contacts with a 1 A current rating per contact. The housing is constructed from black polyamide (PA) material, rated UL 94 V-0 for flammability. It supports mating stacking heights of 3.10 mm, 4.60 mm, and 5.40 mm, with a mating pin height of 3 mm.

Headers, Male Pins Feature Summary

• Single-row vertical configuration for compact board-to-board interconnects
• Gold-plated contacts ensure reliable signal transmission in high-density applications
• Compatible with Archer M50 jumper sockets and shunts for circuit testing

Headers, Male Pins Applications

• High-density electronic assemblies requiring board-to-board connectivity
• Circuit testing and development using compatible jumper sockets
• Compact consumer or industrial devices with limited PCB space

Headers, Male Pins Procurement Notes

Verify that the specific part number M50-3530642 matches the required single-row, 6-position configuration. Confirm that the through-hole termination style aligns with the target PCB layout. Ensure compatibility with the intended mating stack heights and verify that the 1.27 mm pitch fits the design constraints.

Headers, Male Pins Selection Notes

Select this component when a single-row, vertical male header is required for board-to-board applications. It is suitable for designs needing 6 positions at a 1.27 mm pitch. Consider its compatibility with Archer M50 accessories if jumper functionality is needed. Ensure the through-hole mounting method is supported by the manufacturing process.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which specializes in 1.27 mm pitch connectors. The series includes various headers, sockets, and accessories like jumper shunts. The M50-3530642 specifically addresses the need for a low-profile, single-row male connector within this ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other single-row Archer M50 headers with different contact counts, such as M50-3530641 (4 positions) or M50-3530643 (8 positions). Cross-series replacement requires verifying identical 1.27 mm pitch, through-hole termination, and vertical orientation.
