M50-3610842

Headers, Male Pins Overview

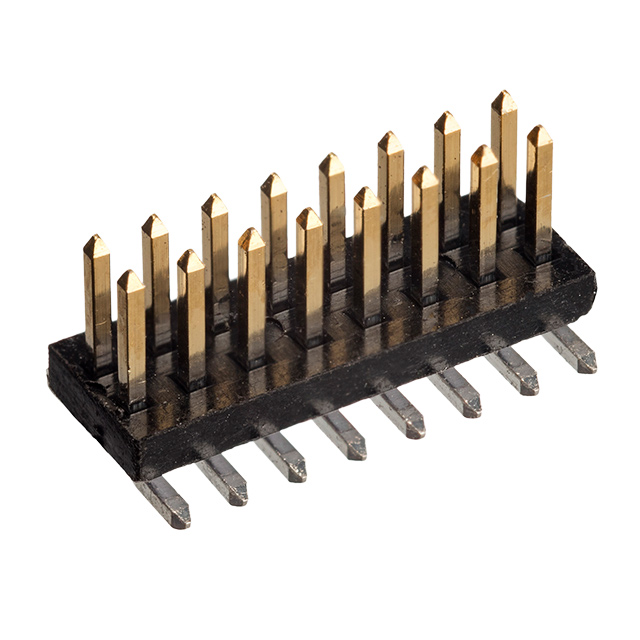

The M50-3610842 is a surface mount pin header from the Harwin Archer M50 series. It features a dual in-line configuration with 16 positions arranged in two rows. The connector utilizes a 1.27 mm (0.05 inch) pitch and includes mounting pegs for stability during assembly. Contact plating is gold over brass, ensuring reliable electrical performance. It operates within a temperature range of -40°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual row surface mount design with integrated mounting pegs
• Gold-plated phosphor bronze contacts for signal integrity
• Compact 1.27mm pitch architecture for high-density applications

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic modules
• High-density signal routing in consumer electronics
• Industrial control systems requiring stable SMT headers

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot codes upon receipt. Ensure storage conditions maintain integrity of gold-plated contacts and polymer housing against environmental degradation prior to soldering.

Headers, Male Pins Selection Notes

Select this model for applications requiring robust surface mount connectivity with mechanical stabilization via pegs. The dual-row layout supports higher pin counts in limited board areas compared to single-row alternatives. Verify compatibility with mating sockets and PCB footprint dimensions before integration.

Headers, Male Pins Part Context

Part of the Archer M50 family, designed for space-constrained environments. The series offers various configurations including shrouded and unshrouded options. This specific variant emphasizes mechanical stability through its pegged design, suitable for automated pick-and-place processes.

Headers, Male Pins Replacement Considerations

Cross-reference with other 1.27mm pitch dual-row SMT headers from Harwin or compatible third-party manufacturers. Ensure identical pin count, pitch, and mounting style match. Verify electrical ratings and material specifications align with original design requirements.
