M50-3632042R

Headers, Male Pins Overview

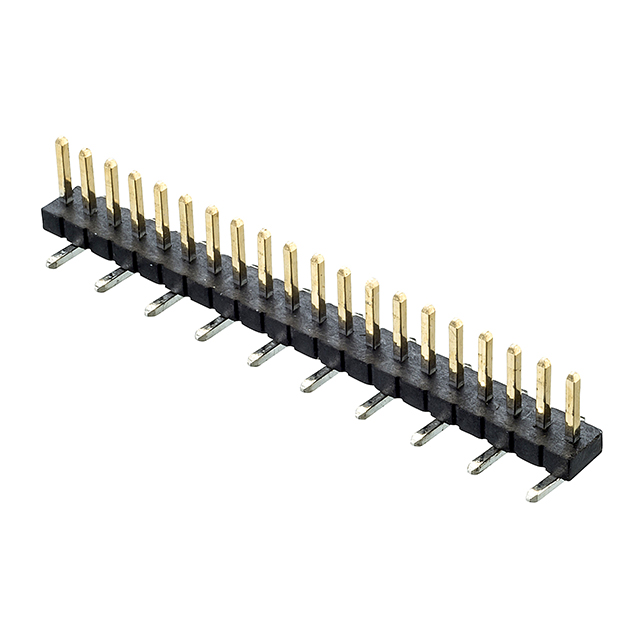

The Harwin M50-3632042R is a surface mount pin header from the Archer M50 series, featuring 20 positions with a 1.27 mm pitch. It is configured as a single-row vertical connector designed for board-to-board applications. The component utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. Constructed with UL 94 V-0 rated LCP housing, it supports standard reflow soldering processes suitable for automated PCB assembly.

Headers, Male Pins Feature Summary

• Single-row vertical surface mount configuration for compact board-to-board interconnects
• Gold-plated phosphor bronze contacts ensuring durable electrical performance
• High-temperature resistant LCP housing material meeting UL 94 V-0 flammability standards

Headers, Male Pins Applications

• Board-to-board connections in consumer electronics assemblies
• Interconnections within industrial control system circuit boards
• Signal routing in automotive electronic modules requiring surface mount headers

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'R' confirms the tape-and-reel packaging format required for your automated pick-and-place equipment. Ensure the ordering part number matches the exact contact count and row configuration specified in your design files to prevent mating incompatibilities during production assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row vertical header is required for high-density PCB layouts. The 1.27 mm pitch allows for tight spacing between components. Consider the surface mount orientation and the specific mating height requirements of the corresponding socket connector to ensure proper mechanical engagement and electrical continuity.

Headers, Male Pins Part Context

This connector belongs to the Harwin Archer M50 family, which provides various mating heights and configurations. The M50 series is widely used in applications demanding reliable interconnects with precise alignment. This specific model represents the standard vertical single-row variant within that extensive product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M50 series headers with identical 20-position single-row vertical specifications. Verify that any alternative maintains the same 1.27 mm pitch and surface mount footprint to ensure compatibility with existing PCB designs.
