M50-4304945

Headers, Receptacles, Female Sockets Overview

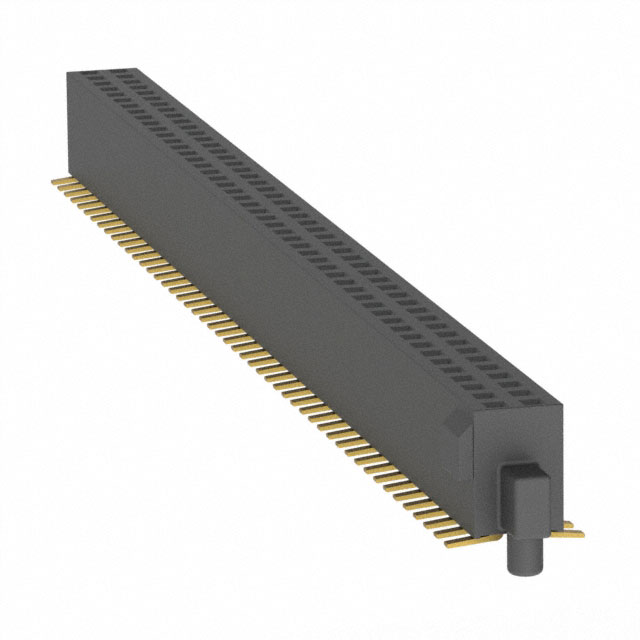

Harwin Inc. M50-4304945 is a board-to-board receptacle from the ARCHER M50 series, designed for surface-mount technology (SMT) assembly. This component features a dual-row configuration with a total of 98 positions, arranged as 49+49 contacts. It utilizes a 1.27 mm pitch and a 1.27 mm row spacing to facilitate high-density interconnections. The connector employs gold-plated phosphor bronze contacts housed in a black thermoplastic body. With a maximum height of 4.60 mm, it supports vertical mating applications while maintaining compliance with RoHS standards and offering moisture sensitivity level 1 classification.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row SMT receptacle design for high-density board-to-board connections
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Black thermoplastic housing provides structural integrity and visual contrast

Headers, Receptacles, Female Sockets Applications

• High-density electronic module interconnects
• Industrial control system backplanes
• Telecommunications equipment internal wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet for the M50-4304945 to confirm current production status and detailed mechanical drawings. Ensure that the receiving PCB footprint matches the specified 1.27 mm pitch and row spacing dimensions. Check for any updated environmental compliance certificates required by your region. Confirm that the soldering profile aligns with the thermal characteristics of the gold-plated contacts and thermoplastic housing to prevent damage during reflow processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-pin-count, low-profile vertical connection is required between two printed circuit boards. The 1.27 mm pitch allows for significant I/O density within a constrained area. Consider the 4.60 mm height relative to surrounding components to ensure adequate clearance. The gold plating is suitable for environments where corrosion resistance and low contact resistance are critical for long-term reliability.

Headers, Receptacles, Female Sockets Part Context

The M50-4304945 belongs to Harwin's ARCHER M50 series, which specializes in compact, high-reliability connectors. This series is engineered for demanding applications requiring robust performance in small form factors. The dual-row architecture maximizes connectivity options without increasing the board footprint significantly, making it a standard choice for modern electronics manufacturing.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
