M50-4801045

$3.48

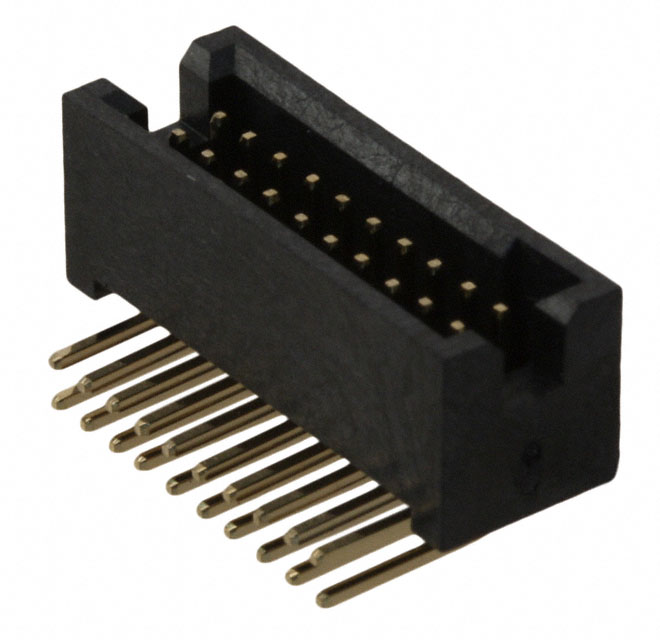

Description：CONN HEADER R/A 20POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:470ac3755ded Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4801045 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 20POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4801045

Description：CONN HEADER R/A 20POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.083" (2.11mm)
Overall Contact Length：-
Insulation Height：0.222" (5.65mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4801045

M50-4801045

Headers, Male Pins Overview

The M50-4801045 is a 20-position (10+10) right-angle header from the Harwin Archer M50 series. It features a 1.27mm pitch, gold-plated contacts, and shrouded housing. Designed for board-to-board applications, it utilizes PC tail termination with high-density specifications. The connector supports a rated current of 1A and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle surface mount design for space-constrained layouts
Shrouded housing ensures proper pin alignment during mating
High-density configuration with 1.27mm spacing

Headers, Male Pins Applications

Industrial equipment interconnects
Factory automation control boards
Data processing hardware connections

Headers, Male Pins Procurement Notes

Verify the specific orientation suffix in the part number to confirm right-angle mounting requirements. Ensure compatibility with mating socket stacking heights ranging from 2.2mm to 8.5mm. Confirm that the PCB footprint matches the specified PC tail dimensions for reliable solder joint formation during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is required to save vertical board space. The shrouded design prevents misalignment compared to open headers. Consider the 1.27mm pitch density for high-pin-count applications where standard 2.54mm spacing is insufficient for the available real estate.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, which offers extensive mating height options for sockets. The series is characterized by its robust construction and suitability for industrial environments. The M50-4801045 specifically addresses the need for horizontal board-to-board connectivity in compact electronic assemblies.
