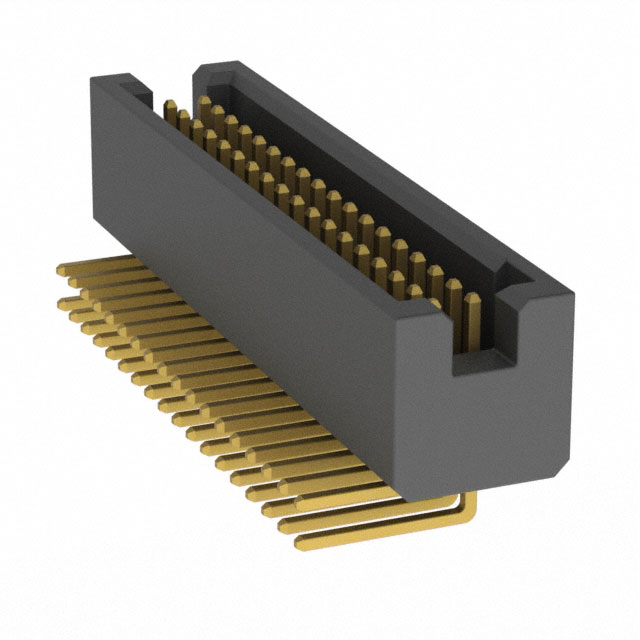

M50-4801845

Description：CONN HEADER R/A 36POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:4a7caebc3261 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4801845 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 36POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4801845

Description：CONN HEADER R/A 36POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：36
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.083" (2.11mm)
Overall Contact Length：-
Insulation Height：0.222" (5.65mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4801845

M50-4801845

Headers, Male Pins Overview

The Harwin M50-4801845 is a 36-position (18+18) dual in-line header from the ARCHER series, featuring a 1.27 mm pitch. It is designed for right-angle surface-mount technology with solder pin termination. The connector utilizes gold-plated phosphor bronze contacts housed in a black shrouded PBT body, rated for 1 A current and 300 V voltage across an operating temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle surface-mount architecture for compact PCB integration
Shrouded housing design ensures precise mating alignment
Gold-plated contacts provide reliable signal transmission

Headers, Male Pins Applications

High-density board-to-board interconnections
Compact electronic module assembly
Industrial control system interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact contact plating thickness and material composition. Ensure the selected variant matches the required right-angle orientation and shrouded configuration for your PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle SMT solution is required for high-density signal routing. The 1.27 mm pitch allows for significant I/O density within limited board areas. Confirm that the 1 A current rating and 300 V insulation requirements align with the target application's electrical specifications.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 family, which specializes in 1.27 mm pitch connectors for demanding environments. The series offers various configurations including vertical and right-angle headers, ensuring compatibility with diverse PCB mounting styles while maintaining consistent mechanical and electrical performance standards.
