M50-4802145

Headers, Male Pins Overview

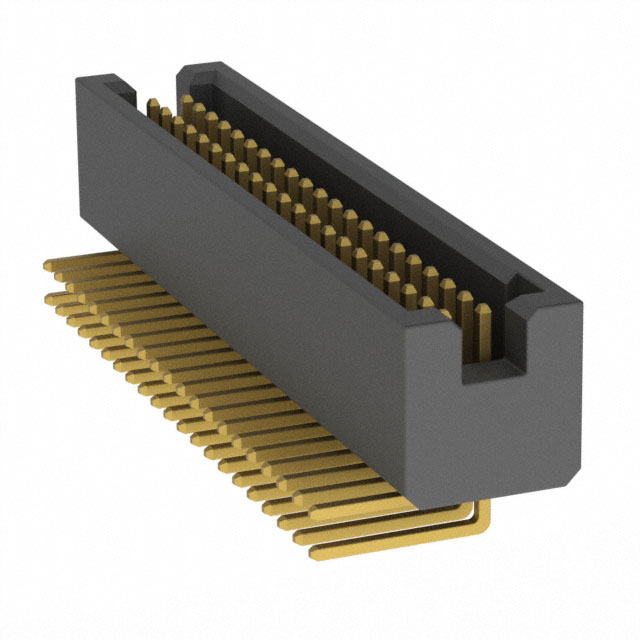

The Harwin M50-4802145 is a surface-mount board-to-board header from the Archer series. It features a dual in-line configuration with 21+21 positions, totaling 42 contacts. The connector utilizes a 1.27 mm pitch and operates horizontally with gold-plated shrouded PC tails for termination. Designed for compact electronic assemblies, it provides reliable signal transmission through its robust mechanical structure.

Headers, Male Pins Feature Summary

• Horizontal surface-mount design for space-constrained applications
• Gold-plated shrouded contacts ensure reliable connectivity
• Dual in-line layout supports high-density circuit routing

Headers, Male Pins Applications

• Compact electronic assemblies requiring horizontal interconnection
• High-density circuit board routing systems
• Signal transmission in constrained spatial environments

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm the 42-position count and horizontal orientation. Ensure compatibility with existing PCB footprints and mating connectors within the Archer series. Cross-reference datasheet specifications for thermal and electrical ratings prior to integration.

Headers, Male Pins Selection Notes

Select this component when horizontal mounting is required for dual-row connections. The 1.27 mm pitch suits dense layouts. Verify that the shrouded design aligns with alignment needs. Confirm surface-mount suitability for the assembly process. Evaluate space constraints against the horizontal profile.

Headers, Male Pins Part Context

This model belongs to the Harwin Archer M50 series, known for high-density board-to-board solutions. The series offers various configurations including vertical and horizontal options. The M50-4802145 specifically addresses horizontal mounting needs with a 42-contact capacity, fitting into broader system architectures requiring reliable interconnects.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Archer headers with matching 1.27 mm pitch and 42 positions. Verify pinout compatibility and mechanical dimensions before substitution. Ensure equivalent electrical ratings and surface-mount characteristics are maintained.
