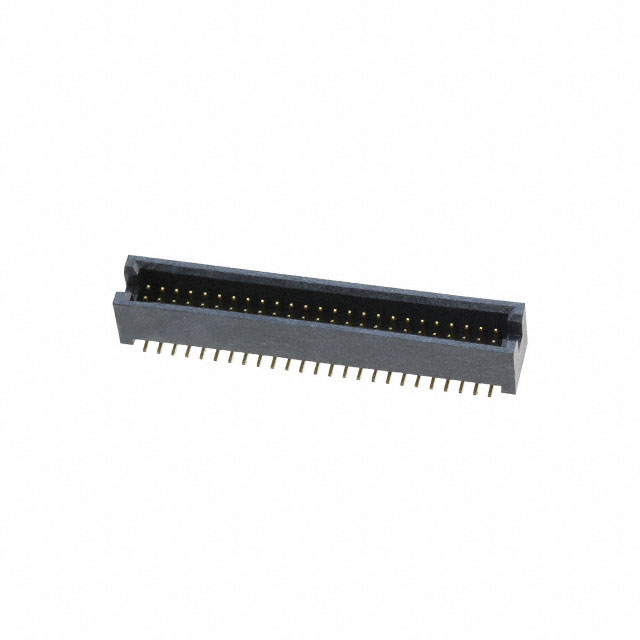

M50-4912545

$7.15

Description：CONN HEADER SMD 50POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:e641810aed63 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4912545 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 50POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4912545

Description：CONN HEADER SMD 50POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：50
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4912545

M50-4912545

Headers, Male Pins Overview

The Harwin M50-4912545 is a shrouded pin header from the ARCHER series, designed for surface mount technology. It features a 1.27 mm pitch and a dual in-line configuration with 50 positions arranged in two rows. The connector utilizes gold-plated phosphor bronze contacts housed in a black liquid crystal polymer (LCP) shell rated UL 94 V-0. It supports a current rating of 1 A and operates within a temperature range of -40°C to +105°C. The component includes mounting pegs for stability during assembly.

Headers, Male Pins Feature Summary

Shrouded design provides alignment and protection for mating connections
Surface mount construction ensures secure PCB attachment
Gold plating on phosphor bronze contacts maintains signal integrity

Headers, Male Pins Applications

Industrial equipment interconnects
Factory automation systems
Wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact physical dimensions and contact configurations. Ensure that the selected variant matches the required surface mount footprint and shrouding style for the target application. Cross-reference the manufacturer datasheet to validate material specifications and environmental ratings before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a high-density, surface-mounted connection is required for industrial environments. The LCP housing offers thermal stability suitable for reflow soldering processes. Consider the 1.27 mm pitch constraint and the need for shrouded alignment when designing the PCB layout. Verify that the 1 A current rating meets the electrical requirements of the connected circuitry.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 series, which specializes in fine-pitch connectors for demanding applications. The series is engineered for reliability in industrial settings, offering robust mechanical performance and consistent electrical characteristics across various position counts and mounting styles.
