M52-040000P1045

Headers, Male Pins Overview

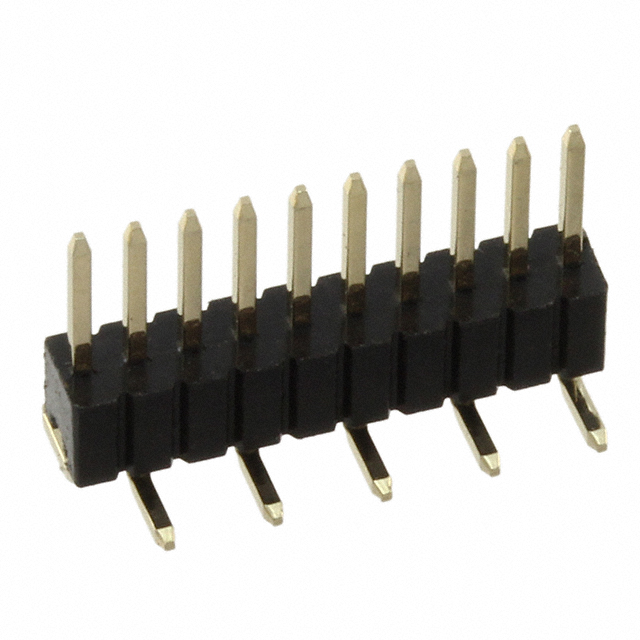

The M52-040000P1045 is a single-row male pin header from the Harwin Archer M52 series, designed for surface mount technology. It features a 1.27 mm (0.050 inch) pitch with 10 positions. The connector utilizes brass contacts with gold plating and a nylon housing. Rated for 1 A current, it operates within a temperature range of -40°C to 105°C. The unit employs a straight orientation with solder tail termination, offering a 2.3 mm tail length for secure PCB attachment.

Headers, Male Pins Feature Summary

• Surface mount design for automated assembly processes
• Gold-plated brass contacts ensure reliable electrical conductivity
• Nylon housing provides structural integrity and insulation

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific part number M52-040000P1045 against official Harwin documentation to confirm compatibility. Ensure that the surface mount footprint matches the target PCB design. Confirm that the 1.27 mm pitch aligns with mating connector requirements. Check for any RoHS compliance certifications if required by project specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row SMT header is required. The 1.27 mm pitch suits applications needing moderate density. Consider the 1 A rating for power distribution limits. The straight configuration is suitable for standard vertical board stacking. Verify thermal resistance capabilities for high-temperature environments.

Headers, Male Pins Part Context

This component belongs to the Archer M52 series, which focuses on compact surface mount solutions. The series offers various pin counts and configurations. The M52-040000P1045 specifically addresses needs for 10-position connections. It complements other M52 headers and sockets in system designs requiring consistent pitch and reliability.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M52 series headers with identical 1.27 mm pitch and 10 positions. Cross-referencing datasheets is essential to verify mechanical dimensions and electrical ratings. Alternative manufacturers may offer similar specs but require footprint validation.
