M52-5010845

Headers, Receptacles, Female Sockets Overview

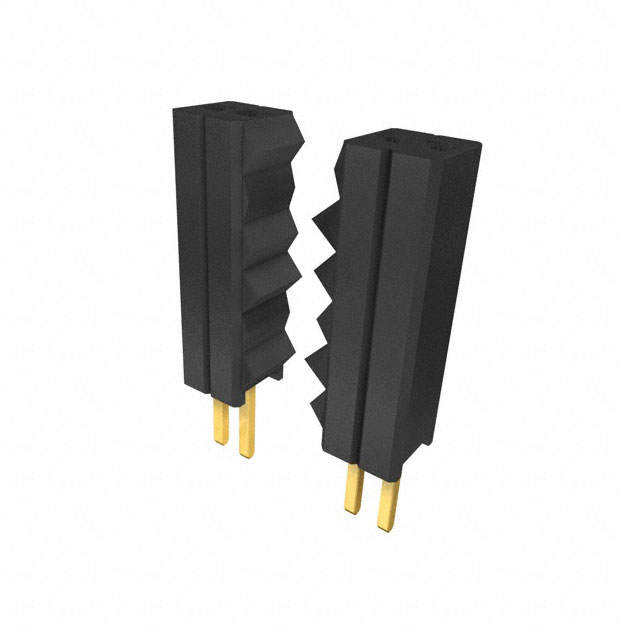

The M52-5010845 is an Archer series socket connector manufactured by Harwin Inc. It features 8 positions with a 0.050 inch (1.27mm) pitch and utilizes gold-plated contacts for reliable signal transmission. Designed for through-hole mounting, this single-row receptacle offers a vertical orientation suitable for board-to-board applications. The unit operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated phosphor bronze contacts ensure durable electrical connectivity
• Vertical single-row design facilitates compact board-to-board integration
• Through-hole termination provides secure mechanical stability on PCBs

Headers, Receptacles, Female Sockets Applications

• General electronic interconnect systems
• Medical device circuitry
• Telecommunications equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the through-hole mounting style aligns with the target PCB assembly process. Ensure compatibility with mating headers from the same Archer series family to maintain proper alignment and contact integrity during operation.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row vertical connector is required for dense layouts. The 1.27mm pitch allows for high I/O density in limited spaces. Consider the through-hole installation method if superior mechanical strength is prioritized over surface mount convenience for the final assembly.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M52 series, which is characterized by its use of 0.46mm square pins. The series supports both single and double row configurations, offering versatility for various interconnect needs. The M52-5010845 specifically represents the eight-position variant within the single-row vertical socket category.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating parts include M52-040023V2045 and M52-040000P2045. Verify that substitute components match the 1.27mm pitch and single-row vertical orientation to ensure physical and electrical compatibility.
