M55-6005042R

Headers, Receptacles, Female Sockets Overview

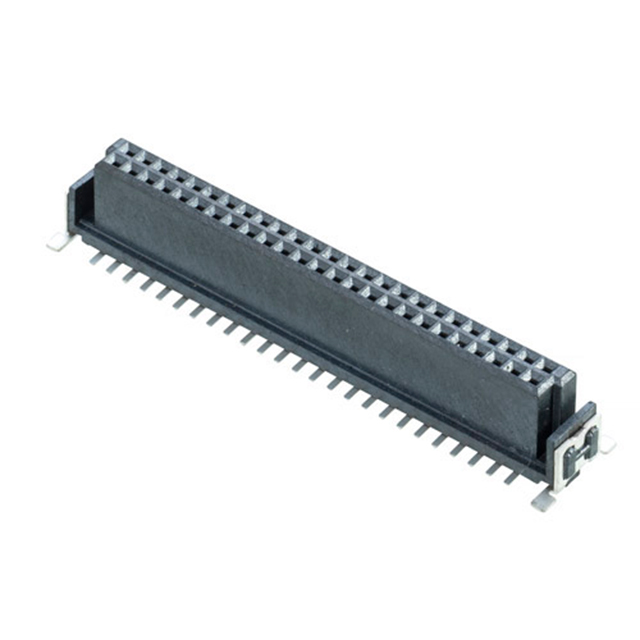

The M55-6005042R is a 50-position board-to-board and mezzanine connector from the Harwin Archer Kontrol series. It features a 1.27 mm pitch with two rows of contacts designed for vertical surface mount technology (SMT) termination. The receptacle utilizes gold-plated phosphor bronze contacts housed in a liquid crystal polymer (LCP) shell rated UL 94 V-0. Electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The unit operates within a temperature range of -55°C to +125°C and provides an insulation resistance of 10 GOhms.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical surface mount receptacle design for direct PCB integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Liquid crystal polymer housing offers high thermal stability and flame resistance

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board interconnections
• Mezzanine card stacking systems
• Compact electronic module assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness, packaging type, and RoHS compliance status. Ensure that the selected variant matches the required vertical orientation and SMT termination style for the target application. Cross-reference the part number with official distributor catalogs to confirm availability and lead times prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density vertical connection is required between adjacent circuit boards. The 1.27 mm pitch allows for compact layouts while maintaining sufficient spacing for signal integrity. Consider the 1.2 A current rating and 100 VAC voltage limit to ensure compatibility with the system's electrical requirements and operating environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer Kontrol M55 series, which specializes in high-reliability interconnect solutions. The series is engineered for applications demanding robust mechanical performance and consistent electrical characteristics in space-constrained environments. The M55-6005042R specifically addresses the need for vertical mating configurations within this product family.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes within the same series include the M55-6003042R (30 positions) and M55-6006842R (68 positions). These alternatives share identical pitch, mounting style, and electrical specifications but differ in contact count. Verify pinout compatibility and mechanical footprint alignment before substitution.
