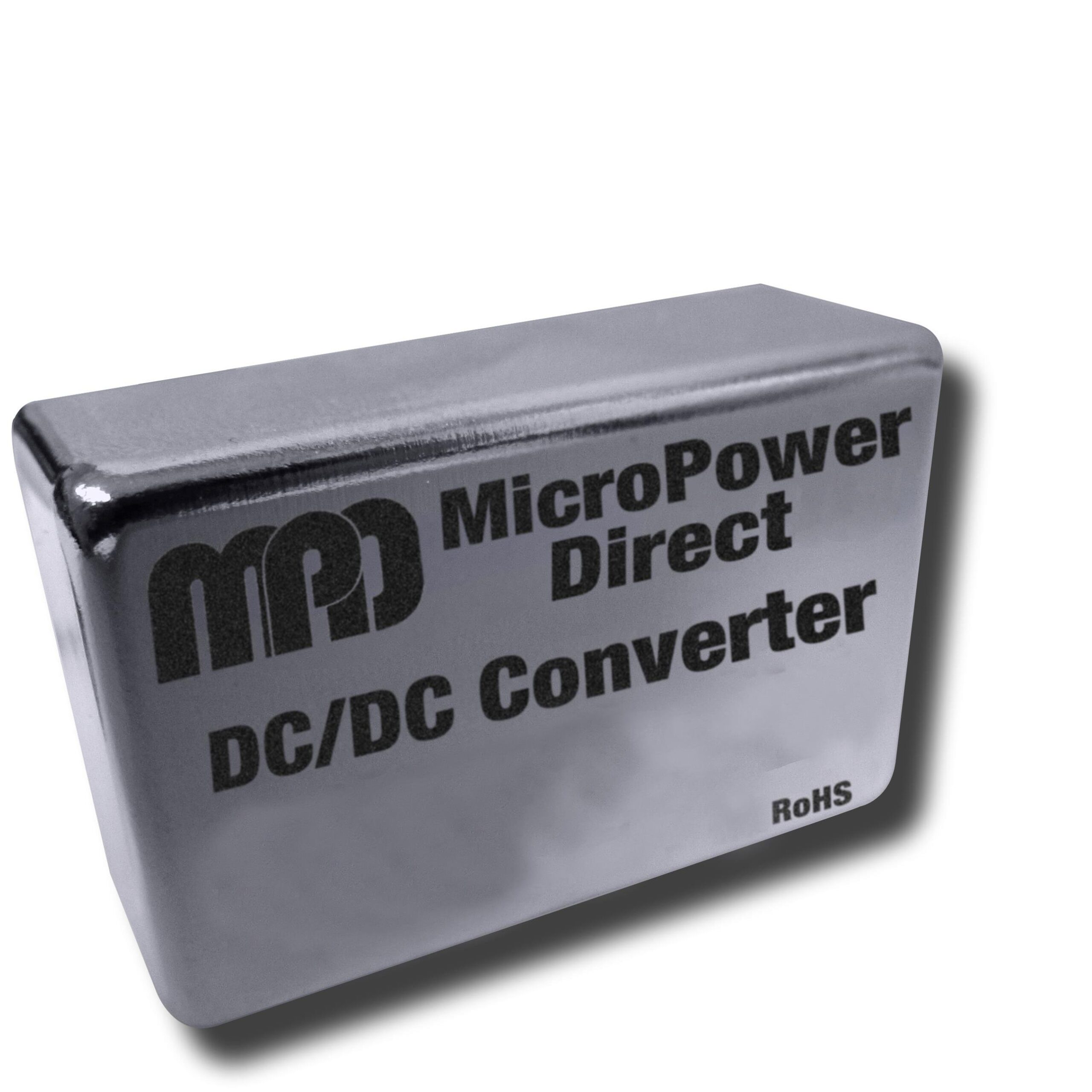

MA1012S-05RW

MA1012S-05RW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,10W,12V IN,5V OUT,1.5 KV. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MA1012S-05RW

• Description：DC/DC,10W,12V IN,5V OUT,1.5 KV
• Series：MA1000RW (10W)
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：-
• Voltage - Input (Max)：-
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：10 W
• Voltage - Isolation：1.5 kV
• Applications：Industrial, ITE (Commercial)
• Features：Proportional Output
• Operating Temperature：-40°C ~ 85°C
• Efficiency：86%
• Mounting Type：-
• Package / Case：-
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2 mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：UR
• Standard Number：60950; 62368
• Grade：-
• Qualification：-
