MA2B00100F

DIACs, SIDACs Overview

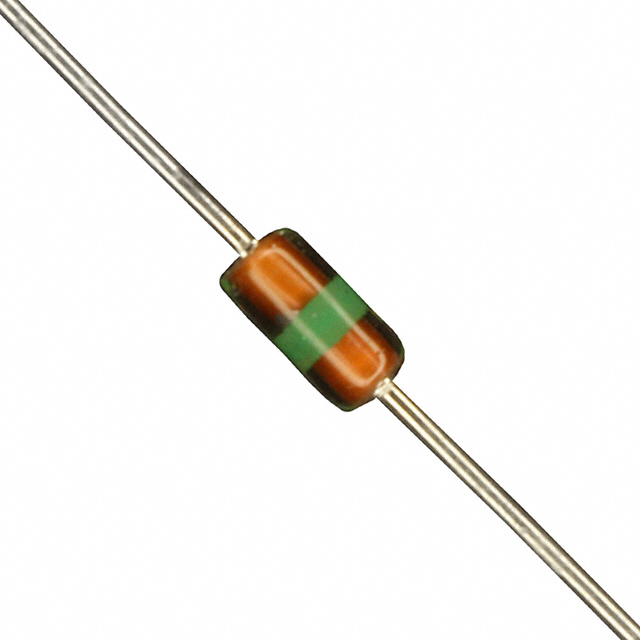

The MA2B00100F is a silicon planar type trigger device manufactured by Panasonic Electronic Components. It functions as a thyristor TRIAC trigger circuit designed for standard applications in general electronic equipment. The component operates within an ambient temperature range of -10°C to 100°C and utilizes a DO-35-A2 package. Key electrical characteristics include a typical breakover voltage (VBO) of 36 V, an output voltage (VO) of 7.0 V, and a breakover current (IBO) of 50 µA at 25°C. It complies with the RoHS Directive.

DIACs, SIDACs Feature Summary

• Provides satisfactory symmetry of breakover voltage
• Delivers large output voltage combined with small breakover current

DIACs, SIDACs Applications

• Thyristor TRIAC trigger circuits
• General electronic equipment
• Office equipment
• Communications equipment
• Household appliances

DIACs, SIDACs Procurement Notes

Verify the specific lifecycle status before procurement, as the datasheet indicates this product falls under maintenance or discontinued categories. Consult official manufacturer channels for the most up-to-date Product Standards and availability information. Ensure compliance with export control regulations if applicable to your region.

DIACs, SIDACs Selection Notes

Select this component for standard thyristor triggering applications requiring reliable breakover voltage symmetry. Verify that the operating environment remains within the specified temperature limits. Consider the absolute maximum ratings for peak current and power dissipation during transient states such as power-on or mode-switching to prevent device failure.

DIACs, SIDACs Part Context

This part belongs to the MA2B001 series of silicon planar trigger devices produced by Panasonic Electronic Components. These components are engineered specifically for use as thyristor TRIAC trigger circuits. The series is intended for general-purpose electronics rather than specialized high-reliability sectors like aerospace or medical life support systems.

DIACs, SIDACs Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. For equivalent functionality, consult the manufacturer's sales staff regarding alternative products or updated specifications.
