MA2C17800E

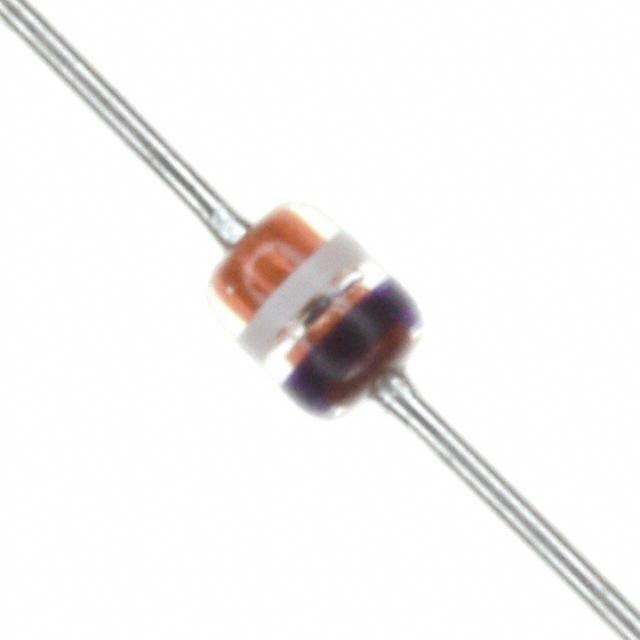

Description：DIODE STANDARD 40V 200MA DO34A1
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Box (TB)

SKU:d4a66404b369 Category: Single Diodes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapex@foxmail.com
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MA2C17800E is listed in the Single Diodes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is DIODE STANDARD 40V 200MA DO34A1. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for MA2C17800E

Description：DIODE STANDARD 40V 200MA DO34A1
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Box (TB)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：40 V
Current - Average Rectified (Io)：200mA
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 200 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：20 ns
Current - Reverse Leakage @ Vr：500 nA @ 35 V
Capacitance @ Vr, F：4pF @ 0V, 1MHz
Mounting Type：Through Hole
Package / Case：DO-204AG, DO-34, Axial
Supplier Device Package：DO34-A1
Operating Temperature - Junction：200°C (Max)

Single Diodes datasheet and documents for MA2C17800E

MA2C17800E

Single Diodes Overview

The Panasonic MA2C17800E is a silicon epitaxial planar switching diode designed for high-speed circuits. It features a DO-34-A1 package with a maximum average forward current of 200 mA and a repetitive peak forward current of 600 mA. The device offers a reverse voltage rating of 40 V, a junction temperature limit of 200°C, and a terminal capacitance of 4 pF at 1 MHz. Reverse recovery time is specified at 20 ns.

Single Diodes Feature Summary

High-speed switching capability with low terminal capacitance
Silicon epitaxial planar construction for thermal stability
DO-34-A1 axial leaded package design

Single Diodes Applications

General electronic equipment
Office equipment
Communications equipment
Measuring instruments

Single Diodes Procurement Notes

Verify the specific suffix '00E' against official Panasonic documentation to confirm packaging details and lifecycle status. The datasheet indicates this component falls under maintenance or discontinued categories; consult the manufacturer's website for current availability and updated product standards before finalizing procurement plans.

Single Diodes Selection Notes

Select this component for applications requiring fast reverse recovery and low parasitic capacitance in standard general-purpose electronics. Ensure operating conditions remain within the absolute maximum ratings, particularly regarding transient states during power-on or mode-switching, to prevent device failure.

Single Diodes Part Context

This part belongs to the MA2C17x series of silicon epitaxial planar diodes manufactured by Panasonic Electronic Components. It serves as a specialized variant optimized for high-speed switching environments where low terminal capacitance is critical for signal integrity in standard electronic assemblies.

Single Diodes Replacement Considerations

Consult the official Panasonic cross-reference tool for verified substitutes. Verify that any alternative component matches the DO-34-A1 package dimensions and electrical characteristics such as reverse recovery time and peak forward current.
