MAAM-011240-TR1000

RF Amplifiers Overview

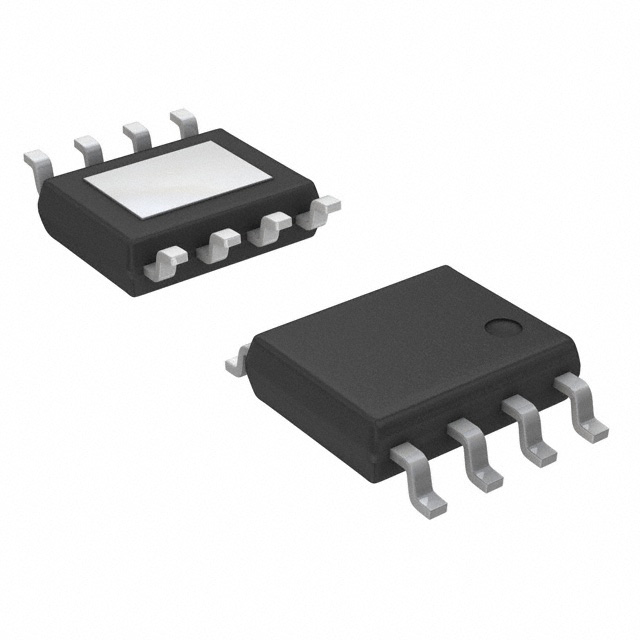

The MAAM-011240-TR1000 is a wideband RF amplifier manufactured by MACOM Technology Solutions. It operates within a frequency range of 5 MHz to 1.218 GHz. The device provides a typical gain of 17 dB and features a noise figure of 2.6 dB. It requires an operating supply voltage of 5 V and draws a supply current of 290 mA. The component is housed in an 8-SOIC package with an exposed pad (SOIC-8EP).

RF Amplifiers Feature Summary

• High gain performance with 17 dB typical amplification across the operational bandwidth.
• Low noise characteristics suitable for sensitive signal reception applications.
• Differential architecture designed for high linearity and stability.

RF Amplifiers Applications

• General purpose RF amplification circuits
• Wireless communication systems requiring broadband coverage
• Test and measurement equipment signal conditioning

RF Amplifiers Procurement Notes

Verify the specific ordering suffix TR1000 confirms the tape and reel packaging quantity of 1000 units. Ensure the SOIC-8EP package variant matches the design requirements. Confirm availability status as distribution channels may report limited stock or discontinuation notices. Cross-reference the manufacturer part number with official MACOM documentation to ensure compatibility with system specifications.

RF Amplifiers Selection Notes

Select this component when a differential RF amplifier is required for frequencies up to 1.218 GHz. Consider the 290 mA supply current for power budget calculations. The 5 V operation voltage must align with the system power rails. Evaluate the 2.6 dB noise figure against system sensitivity requirements. The SOIC-8EP package facilitates surface mount assembly.

RF Amplifiers Part Context

This model belongs to the MAAM series of RF amplifiers from MACOM Technology Solutions. It is distinct from other models like the MAAL-011240 which targets higher millimeter-wave frequencies. The MAAM series generally focuses on lower frequency broadband applications. This specific part represents a standard wideband solution in the portfolio.

RF Amplifiers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements through official MACOM engineering support channels. Do not assume pin-to-pin compatibility with other RF amplifiers without detailed datasheet comparison.
