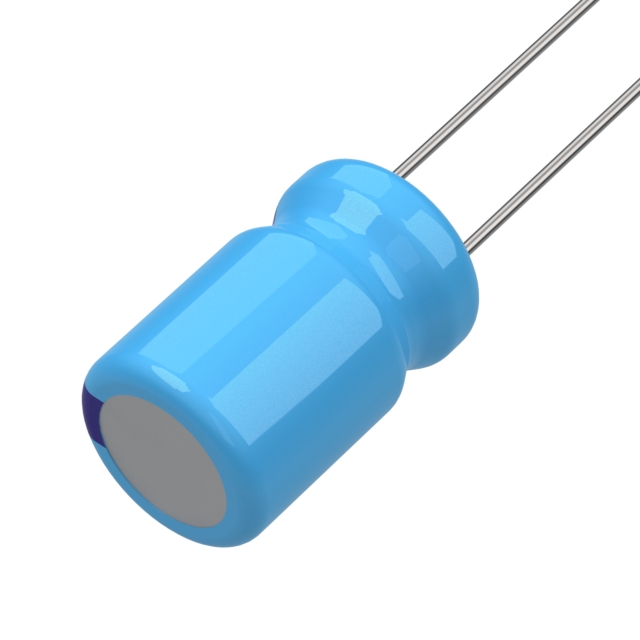

MAL209735101E6

MAL209735101E6 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Vishay Beyschlag/Draloric/BC Components. Its product description is CAP ALUM 100UF 20% 16V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MAL209735101E6

• Description：CAP ALUM 100UF 20% 16V RADIAL TH
• Series：097 RLP 7
• Mfr：Vishay Beyschlag/Draloric/BC Components
• Package：Tape & Box (TB)
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：16 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1500 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：90 mA @ 120 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.315" (8.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：2.5 Ohms

Aluminum Electrolytic Capacitors datasheet and documents for MAL209735101E6
