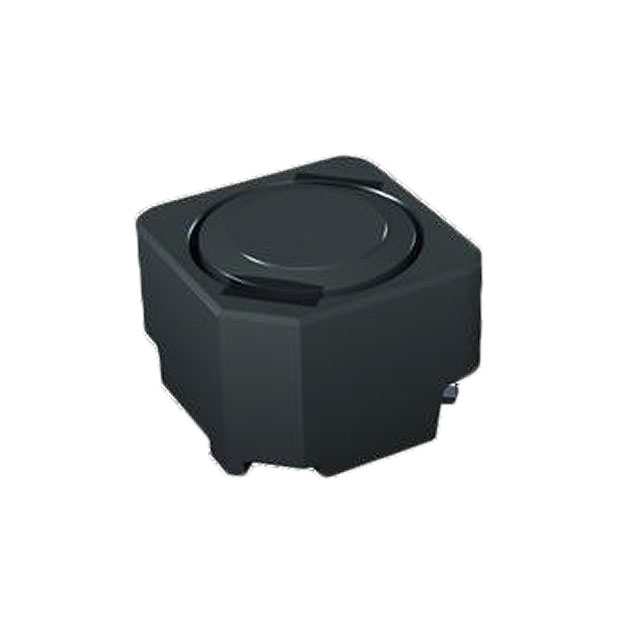

MBH7045C-100MA=P3

Fixed Inductors Overview

The Murata MBH7045C-100MA=P3 is a shielded power inductor from the MBH7045C series, designed for surface-mount applications. It features a ferrite core and wirewound construction with an inductance of 10 µH and a tolerance of ±20%. The component supports a maximum DC current of 2.5 A and reaches saturation at 2.5 A. Its DC resistance is 43.2 mΩ. Operating within a temperature range of -40°C to +150°C, it measures 7.2 mm x 7.2 mm with a maximum height of 4.8 mm.

Fixed Inductors Feature Summary

• Shielded wirewound design utilizing a ferrite core to minimize electromagnetic interference.
• AEC-Q200 qualified for automotive reliability standards.
• High thermal stability supporting operation up to 150°C.

Fixed Inductors Applications

• Automotive electronic circuits
• Power supply filtering
• DC-DC converter input/output stages

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Murata documentation to confirm electrical parameters, as distributor listings may contain discrepancies regarding resistance or current ratings. Ensure the suffix matches the required packaging configuration. Confirm RoHS compliance status directly with the supplier prior to finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor with high current handling is required for automotive-grade designs. The 10 µH value suits intermediate frequency switching applications. Consider the physical footprint constraints and the need for low DC resistance to minimize conduction losses in power paths.

Fixed Inductors Part Context

This part belongs to the MBH7045C series of power inductors manufactured by Murata Electronics. The series is characterized by its small surface-mount package and robust performance suitable for demanding environments. It complements other variants in the lineup offering different inductance values while maintaining consistent mechanical dimensions.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Murata's official cross-reference tools or datasheets for verified alternatives.
