MBR400100CTR

Diode Arrays Overview

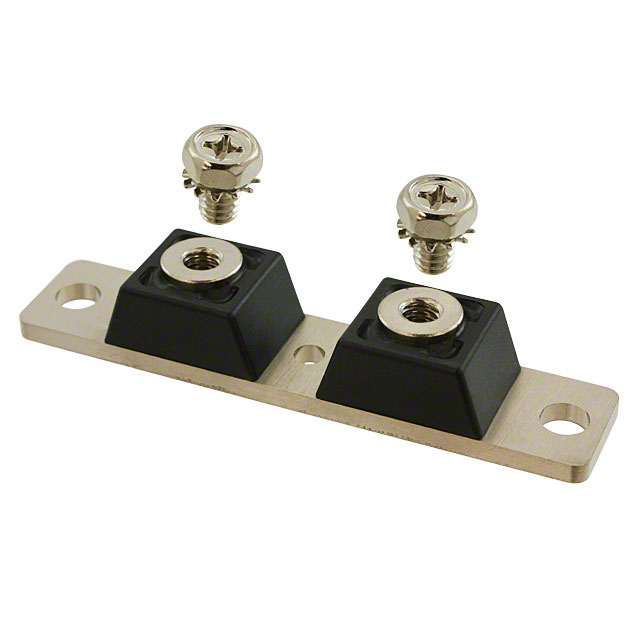

The MBR400100CTR is a silicon power Schottky diode module from the MBR400 series, rated for a repetitive peak reverse voltage of 100 V and an average forward current of 400 A per package. It features a twin tower screw-mount package with a thermal resistance of 0.35 °C/W per leg. The device supports an operating temperature range of -55 to 150 °C and offers a peak forward surge current capability of 3000 A.

Diode Arrays Feature Summary

• High surge current capability designed for demanding power applications
• Twin tower package configuration optimized for efficient thermal management
• Robust construction resistant to electrostatic discharge events

Diode Arrays Applications

• Industrial motor drives and control systems
• DC-DC converter circuits in power supplies
• Freewheeling rectification in high-current inverters

Diode Arrays Procurement Notes

Verify the specific suffix 'R' against official documentation to confirm terminal lead orientation, as this variant may feature reversed leads compared to standard versions. Confirm that the component is sourced directly from authorized channels to ensure authenticity and traceability. Check for RoHS compliance status if required by your manufacturing standards. Ensure the procurement channel provides valid datasheets matching the exact part number.

Diode Arrays Selection Notes

Select this component when a high-current Schottky solution with low forward voltage drop is required. The twin tower design facilitates effective heat dissipation through direct mounting to a heatsink. Consider the 100 V rating for applications requiring moderate blocking voltage with high current handling capabilities.

Diode Arrays Part Context

This module belongs to the MBR400 family of silicon Schottky rectifiers, which includes variants ranging from 45 V to 100 V reverse voltage ratings. All members share identical physical dimensions and thermal characteristics, differing primarily in their voltage blocking capabilities while maintaining the same 400 A current rating.

Diode Arrays Replacement Considerations

Cross-reference with other MBR400 series parts such as MBR40045CT or MBR40060CT if lower voltage ratings are acceptable. Verify pinout compatibility before substitution.
