MC-V09-516-Q

Alarms, Buzzers, And Sirens Overview

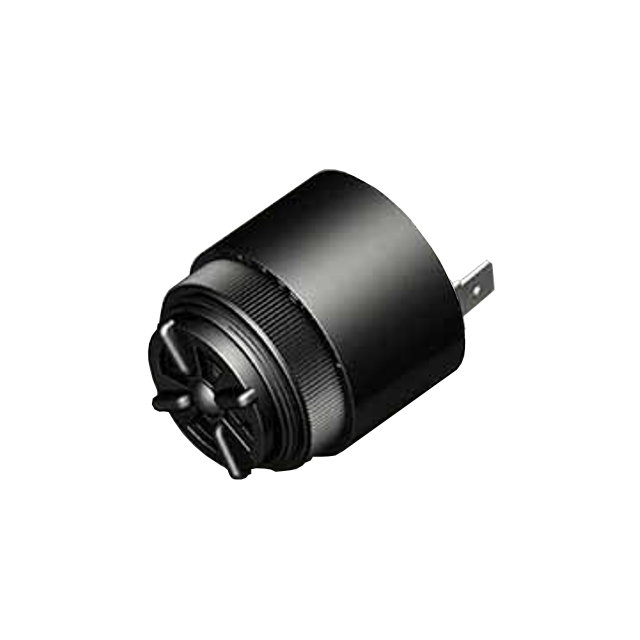

The MC-V09-516-Q is a panel mount chime alarm manufactured by Floyd Bell Inc, belonging to the AudioLarm II series. It utilizes piezoelectric technology for sound generation and features an internally driven indicator circuit. The device operates on a DC input voltage range of 5 to 25 volts. It produces a sound pressure level of 70 dB at 5 volts measured at a distance of 61 cm. The operating frequency is specified at 2.9 kHz. Electrical current consumption ranges from 5 to 25 mA depending on the applied voltage within the rated range. The unit is designed for top port mounting and includes wire leads for connection.

Alarms, Buzzers, And Sirens Feature Summary

• Piezoelectric chime alarm with integrated internal drive circuitry
• Panel mount construction with top-mounted ports and wire lead termination
• IP68 rated enclosure providing dust tight and waterproof protection
• Operates on standard DC voltage inputs without external drivers

Alarms, Buzzers, And Sirens Applications

• Industrial machinery status indication
• Equipment fault signaling in control panels
• Safety warning systems requiring water-resistant components
• Automated manufacturing process alerts

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific suffix configuration against the manufacturer's current datasheet to ensure compatibility with required voltage and acoustic specifications. Confirm that the wire lead length and termination style meet the assembly requirements. Check for any recent updates to the UL or UR approval agency listings relevant to the installation environment. Ensure the IP68 rating aligns with the environmental exposure conditions of the target application.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a rugged, waterproof audible indicator is required for panel mounting. The internal drive capability simplifies circuit design by eliminating the need for external oscillators. Consider the 70 dB output level relative to ambient noise levels in the intended installation area. Verify that the 5 to 25 VDC operating range matches the available system power supply rails.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the AudioLarm II series, which is described as a widely used industrial alarm line. The series focuses on durable piezoelectric devices suitable for harsh environments. The model number indicates specific acoustic and electrical characteristics distinct from other variants in the same product family.

Alarms, Buzzers, And Sirens Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information regarding equivalent models with similar voltage, size, and acoustic requirements.
