Product Detailed Parameters
- Description：MOD THYRISTOR DUAL 1400V Y2-DCB
- Series：-
- Mfr：IXYS
- Package：Box
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.4 kV
- Current - On State (It (AV)) (Max)：320 A
- Current - On State (It (RMS)) (Max)：500 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：9200A, 9800A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：150 mA
- Grade：-
- Qualification：-
Download product information
Overview

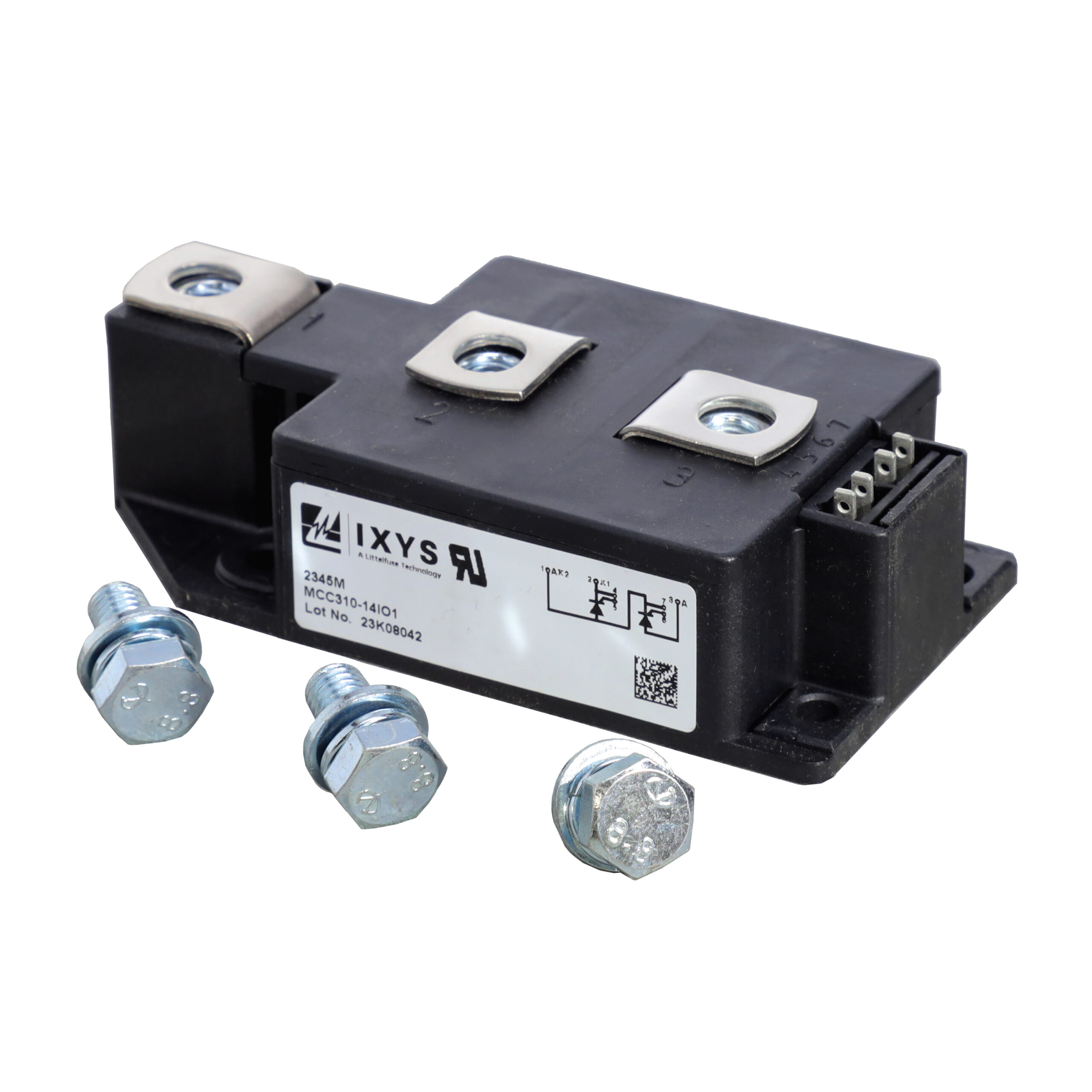

The IXYS MCC310-14IO1 is a thyristor module with a maximum repetitive reverse voltage of 1400 V and an average on-state current rating of 320 A. It features a seven-pin configuration for panel mounting, utilizing direct copper bonded Al2O3 ceramic base plates. The device supports a non-repetitive surge current up to 9800 A at 8.3 ms (60 Hz). Key electrical parameters include a gate trigger current of 150 mA, a peak on-state voltage of 1.32 V, and a maximum operating junction temperature of 140°C.
Feature Summary
- Features planar passivated chips integrated into an international standard package.
- Incorporates keyed gate and cathode twin pins for secure terminal connections.
- Provides high isolation voltage capability through its ceramic base plate construction.
Applications
- Motor control systems
- Power converter circuits
- Industrial furnace heat and temperature control
- Lighting control equipment
Procurement Notes
Verify the specific part number MCC310-14IO1 against official manufacturer documentation to confirm technical specifications. Ensure that the procurement channel provides valid traceability for power semiconductor components. Cross-reference datasheet details regarding thermal management requirements and mounting torque specifications before finalizing orders.
Selection Notes
Select this component based on the required 1400 V blocking voltage and 320 A continuous current capacity. Evaluate the thermal impedance characteristics relative to the intended heatsink design. Confirm compatibility with the specified gate trigger current and voltage levels within the driving circuit architecture.
Part Context
This module belongs to the MCC310 series of thyristor modules manufactured by IXYS. The series offers various voltage ratings ranging from 800 V to 2200 V while maintaining consistent current handling capabilities. The MCC310-14IO1 specifically addresses applications requiring robust performance at 1400 V.
Replacement Considerations
Consult official IXYS documentation for verified substitute part numbers within the MCC310 or MCD310 series. Ensure any replacement matches the 1400 V rating and 320 A current capacity. Verify pinout compatibility and mechanical dimensions before implementing cross-compatibility in existing designs.
FAQ
What is the maximum non-repetitive surge current rating?
The MCC310-14IO1 supports a non-repetitive surge current of 9800 A for an 8.3 ms duration at 60 Hz sine wave conditions.
How is the gate terminal configured?
The module utilizes keyed gate and cathode twin pins to ensure correct orientation and secure connection during installation.
What is the typical weight of the module?
The typical weight of the MCC310-14IO1 module, including screws, is 320 grams.
