MCD312-12IO1

SCRs - Modules Overview

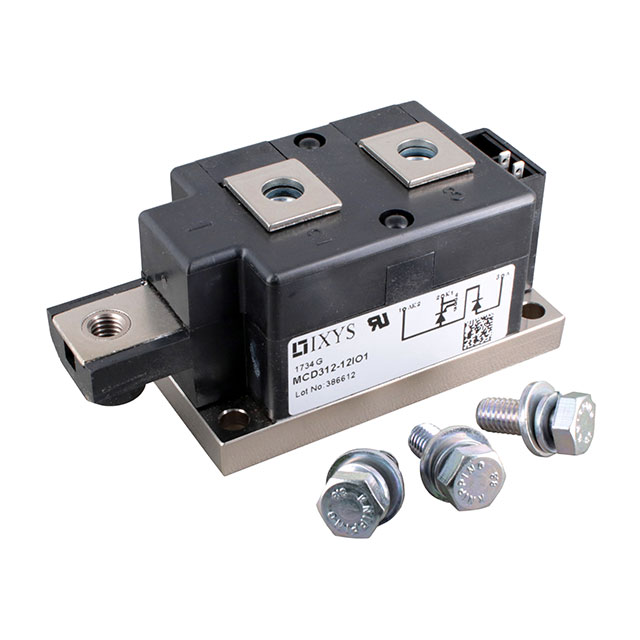

The IXYS MCD312-12IO1 is a high-power thyristor module designed for industrial power conversion. It features a rated average on-state current of 312A and a repetitive peak reverse voltage of 1200V. The device utilizes a Y1-CU panel mount package with five terminals, supporting a maximum junction temperature of 150°C and an operating range from -40°C to +150°C. Key electrical characteristics include a peak non-repetitive forward surge current of 11.9kA, a maximum gate trigger current of 150mA, and a peak on-state voltage of 1.25V.

SCRs - Modules Feature Summary

• High thermal stability enabling operation up to 150°C junction temperature
• Robust surge current handling capability for transient protection
• Standardized Y1-CU panel mounting interface for mechanical integration

SCRs - Modules Applications

• Industrial motor drives and variable frequency drives
• High-power DC-DC converters and rectifiers
• Static power switching in energy systems

SCRs - Modules Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure correct terminal pinout and isolation ratings. Confirm that the component matches the required voltage and current specifications for the target application circuit before finalizing procurement orders.

SCRs - Modules Selection Notes

Select this module when applications require high current capacity combined with moderate blocking voltage levels. Ensure the cooling system design accommodates the thermal dissipation requirements associated with the specified on-state voltage and continuous current ratings.

SCRs - Modules Part Context

This component belongs to the IXYS MCC/MCD series of discrete thyristor modules. These devices are engineered for robust performance in demanding power electronics environments, offering reliable switching capabilities for heavy-duty industrial equipment and infrastructure applications.

SCRs - Modules Replacement Considerations

Direct replacements must match the 1200V rating, 312A current capacity, and Y1-CU package dimensions. Verify gate trigger parameters and thermal resistance values to ensure equivalent performance in existing designs without requiring major layout modifications.
