MCH6101-TL-E

$0.30

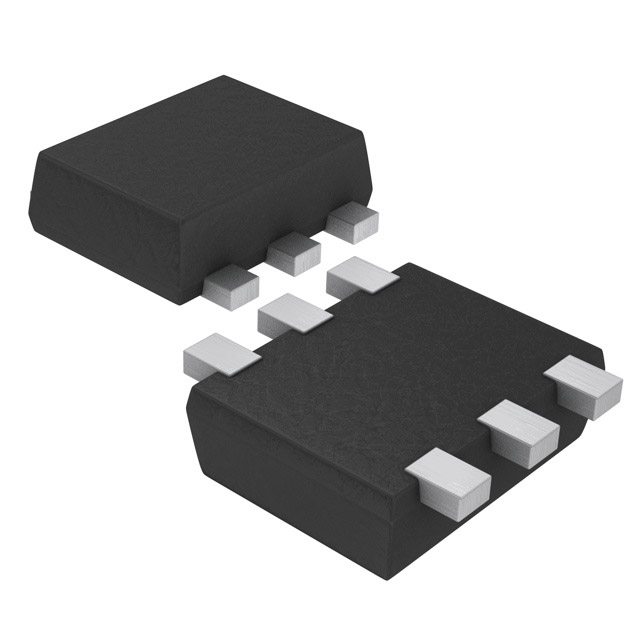

Description：TRANS PNP 15V 1.5A 6-MCPH
Series：-

SKU:a8a01e49c8f2 Category: Single Bipolar Transistors Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCH6101-TL-E is listed in the Single Bipolar Transistors range at ChipApex. The manufacturer field lists onsemi. Its product description is TRANS PNP 15V 1.5A 6-MCPH. Review the specifications below when checking this part for your BOM.

Single Bipolar Transistors specifications for MCH6101-TL-E

Description：TRANS PNP 15V 1.5A 6-MCPH
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT),Bulk
Transistor Type：PNP
Current - Collector (Ic) (Max)：1.5 A
Voltage - Collector Emitter Breakdown (Max)：15 V
Vce Saturation (Max) @ Ib, Ic：180mV @ 15mA, 750mA
Current - Collector Cutoff (Max)：100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：200 @ 100mA, 2V
Power - Max：1 W
Frequency - Transition：430MHz
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-SMD, Flat Leads
Supplier Device Package：6-MCPH

Single Bipolar Transistors datasheet and documents for MCH6101-TL-E

MCH6101-TL-E

Single Bipolar Transistors Overview

The MCH6101-TL-E is a PNP single bipolar transistor in an MCPH6 package. It supports -15V collector-to-emitter voltage and -1.5A continuous collector current. The device features a gain-bandwidth product of 430MHz at -300mA. DC current gain reaches a minimum of 200 at -100mA. Collector-to-emitter saturation voltage is typically -110mV at -750mA. Maximum power dissipation is 1.0W on a ceramic substrate. Junction temperature rating is 150°C.

Single Bipolar Transistors Feature Summary

Adoption of MBIT processes for large current capacity
Low collector-to-emitter saturation voltage
High-speed switching capability
Ultrasmall package facilitates miniaturization

Single Bipolar Transistors Applications

Relay drivers
Lamp drivers
Motor drivers
Flash circuits

Single Bipolar Transistors Procurement Notes

Verify the component against official datasheet EN6387B to confirm specifications. Ensure the MCPH6 package matches design requirements. Check RoHS compliance status. Confirm the TL marking corresponds to the correct revision. Validate electrical characteristics against application conditions.

Single Bipolar Transistors Selection Notes

Select this component for applications requiring high-speed switching and low saturation voltage. The MCPH6 package suits space-constrained designs. Verify thermal management capabilities for power dissipation limits. Consider the -15V rating for circuit voltage levels. Evaluate current handling needs against the -1.5A maximum rating.

Single Bipolar Transistors Part Context

This part belongs to the MCH6101 series from onsemi. It is a silicon PNP transistor designed for general-purpose switching. The MCPH6 package provides a compact footprint. The device utilizes MBIT process technology. It is intended for use in various driver applications.
