MCIMX6X1EVO10AB

Microprocessors Overview

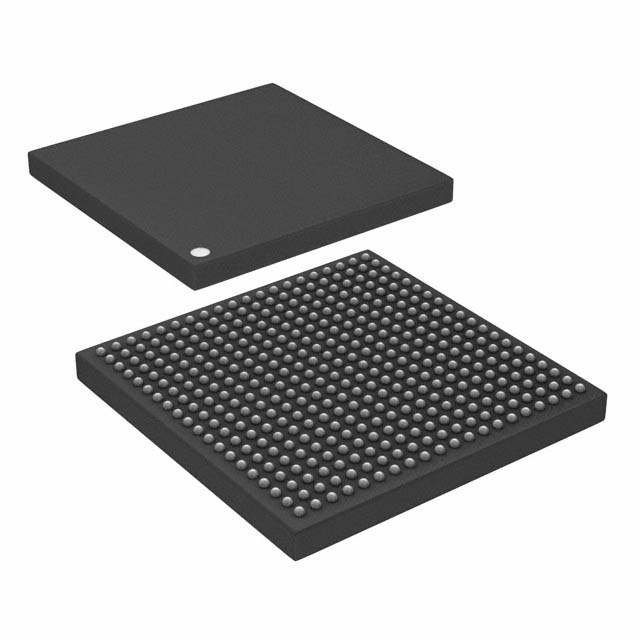

The MCIMX6X1EVO10AB is a 32-bit microprocessor from the NXP i.MX 6SoloX series, featuring dual cores: an ARM Cortex-A9 running at 1 GHz and an ARM Cortex-M4 running at 227 MHz. It utilizes a 400-LFBGA package with dimensions of 17x17 mm. The device includes 144 kB of data RAM and 96 kB of data ROM, alongside a 256 kB L2 cache. Operating voltage ranges from 950 mV to 1.5 V, with I/O voltages supporting 1.8 V, 2.5 V, 2.8 V, and 3.15 V. It supports DDR3, DDR3L, and LPDDR2 memory types and operates within a temperature range of -20°C to +105°C.

Microprocessors Feature Summary

• Integrates heterogeneous processing with an application-oriented Cortex-A9 core and a real-time Cortex-M4 core for efficient task separation.
• Includes comprehensive security features such as A-HAB, ARM TrustZone, CAAM, CSU, and SNVS for secure boot and data protection.
• Supports multiple display interfaces including LVDS, RGB, and MIPI-DSI for versatile visual output options.

Microprocessors Applications

• Consumer electronics requiring multimedia capabilities
• Industrial control systems needing real-time processing
• Smart home devices with connectivity requirements

Microprocessors Procurement Notes

Verify the specific suffix 'EVO' against the official NXP datasheet to confirm it denotes the industrial temperature grade (-20°C to +105°C) and not a different variant. Ensure compatibility with required memory types (DDR3/LPDDR2) and check for any obsolescence notices, as distributors list this part as 'Not Recommended for New Designs'. Confirm package details match the 400-LFBGA specification.

Microprocessors Selection Notes

Select this processor when a combination of high-performance application processing and deterministic real-time control is required in a single chip. It is suitable for designs where power efficiency is critical due to the low-power M4 core handling background tasks. Consider the available interfaces like Ethernet, USB, and CAN if connectivity is a primary design constraint.

Microprocessors Part Context

This component belongs to the i.MX 6SoloX family, designed to bridge the gap between high-end applications processors and microcontrollers. It targets cost-sensitive consumer and industrial markets by integrating necessary peripherals and security features typically found in separate chips, reducing overall system complexity and board space.

Microprocessors Replacement Considerations

Check NXP's official cross-reference tools for direct pin-to-pin or functional equivalents within the i.MX 6 series. Note that parts with different suffixes may vary in temperature range or memory support. Verify if newer generations like the i.MX 8M Mini offer better performance while maintaining software compatibility.
