MCZ1210AH360L2TD0G

Common Mode Chokes Overview

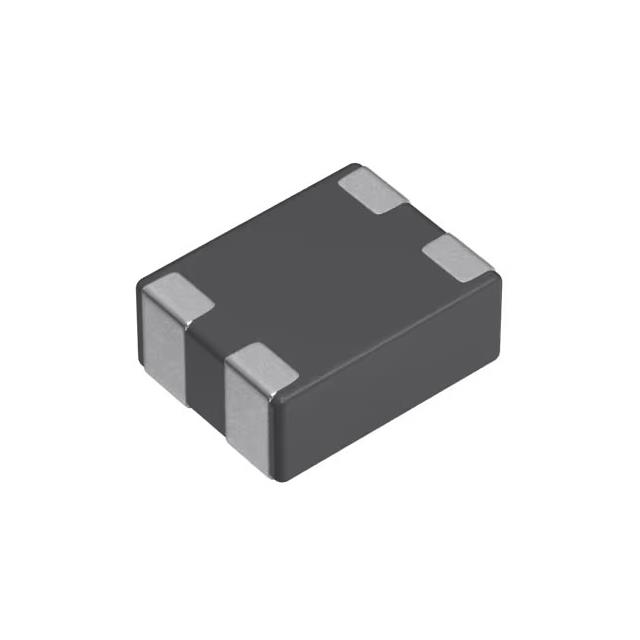

The MCZ1210AH360L2TD0G is a surface-mount common mode choke from the TDK MCZ-AH series, designed for automotive applications. It features a 1210 (0504 metric) package with dimensions of 1.25 mm x 1 mm x 0.5 mm. The component provides an impedance of 36 Ohms at 100 MHz and supports a maximum DC current of 200 mA. It has a maximum DC resistance of 1 Ohm and operates within a temperature range of -40°C to +105°C. The device is AEC-Q200 qualified.

Common Mode Chokes Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• Compact 1210 surface-mount footprint
• Low DC resistance design

Common Mode Chokes Applications

• Automotive signal line filtering
• In-vehicle network protection

Common Mode Chokes Procurement Notes

Verify the specific suffix L2TD0G against official TDK documentation to confirm exact packaging and tape specifications. Ensure compatibility with standard reflow soldering profiles. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before integration into production.

Common Mode Chokes Selection Notes

Select this component for circuits requiring low inductance common mode suppression on high-speed data lines. The 36 Ohm impedance suits frequencies around 100 MHz. Verify that the 200 mA current rating meets the operational requirements of the target signal line without saturation.

Common Mode Chokes Part Context

This part belongs to the TDK MCZ-AH series of automotive-grade common mode chokes. These components are engineered for compact PCB layouts in demanding environments. The series offers various impedance values tailored for different signal integrity needs in automotive electronics.

Common Mode Chokes Replacement Considerations

Check TDK's official substitution list for equivalent parts within the MCZ-AH series. Verify pinout and impedance characteristics match exactly. No public substitute part numbers are confirmed in the provided source material.
