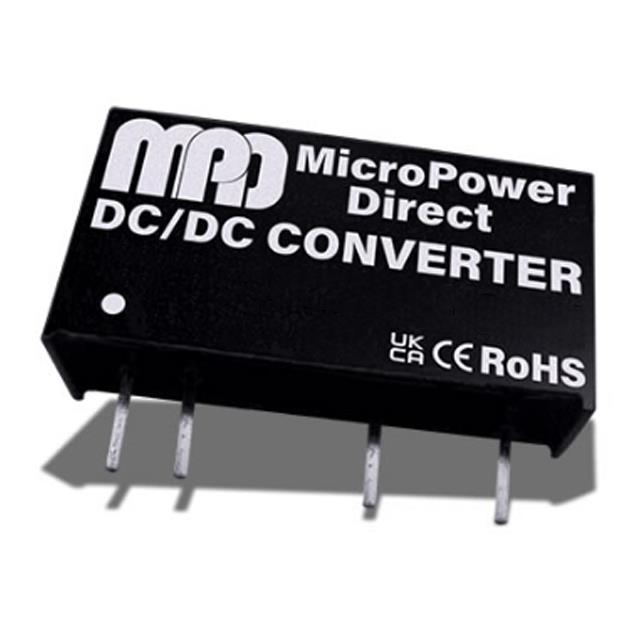

MD103S-05B

MD103S-05B is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,1W,3V IN,5V OUT,3KV,. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MD103S-05B

• Description：DC/DC,1W,3V IN,5V OUT,3KV,
• Series：MD100B
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：Industrial, ITE (Commercial)
• Features：Proportional Output
• Operating Temperature：-40°C ~ 105°C
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：0.77" L x 0.40" W x 0.24" H (19.5mm x 10.2mm x 6.0mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MD103S-05B
