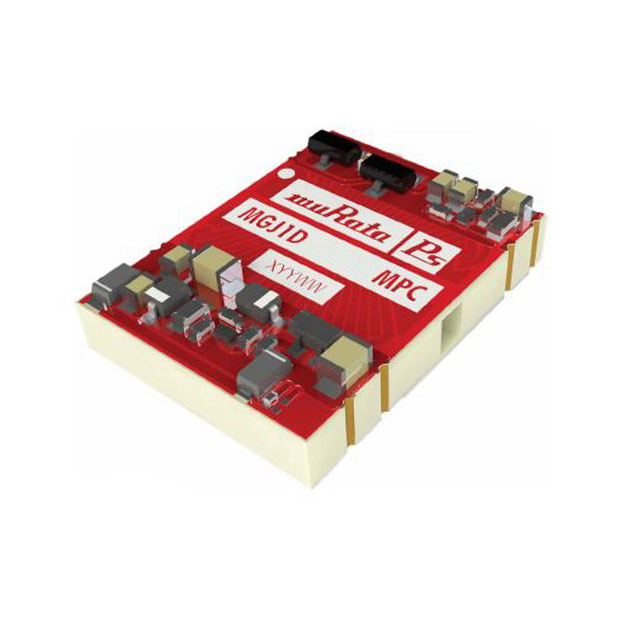

MGJ1D121509MPC-R13

MGJ1D121509MPC-R13 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 15V -9V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MGJ1D121509MPC-R13

• Description：DC DC CONVERTER 15V -9V 1W
• Series：MGJ1 (1W)
• Mfr：Murata Power Solutions Inc.
• Package：Tape & Reel (TR)
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：42mA, 42mA
• Power (Watts)：1 W
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 105°C
• Efficiency：73%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module
• Size / Dimension：0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MGJ1D121509MPC-R13
