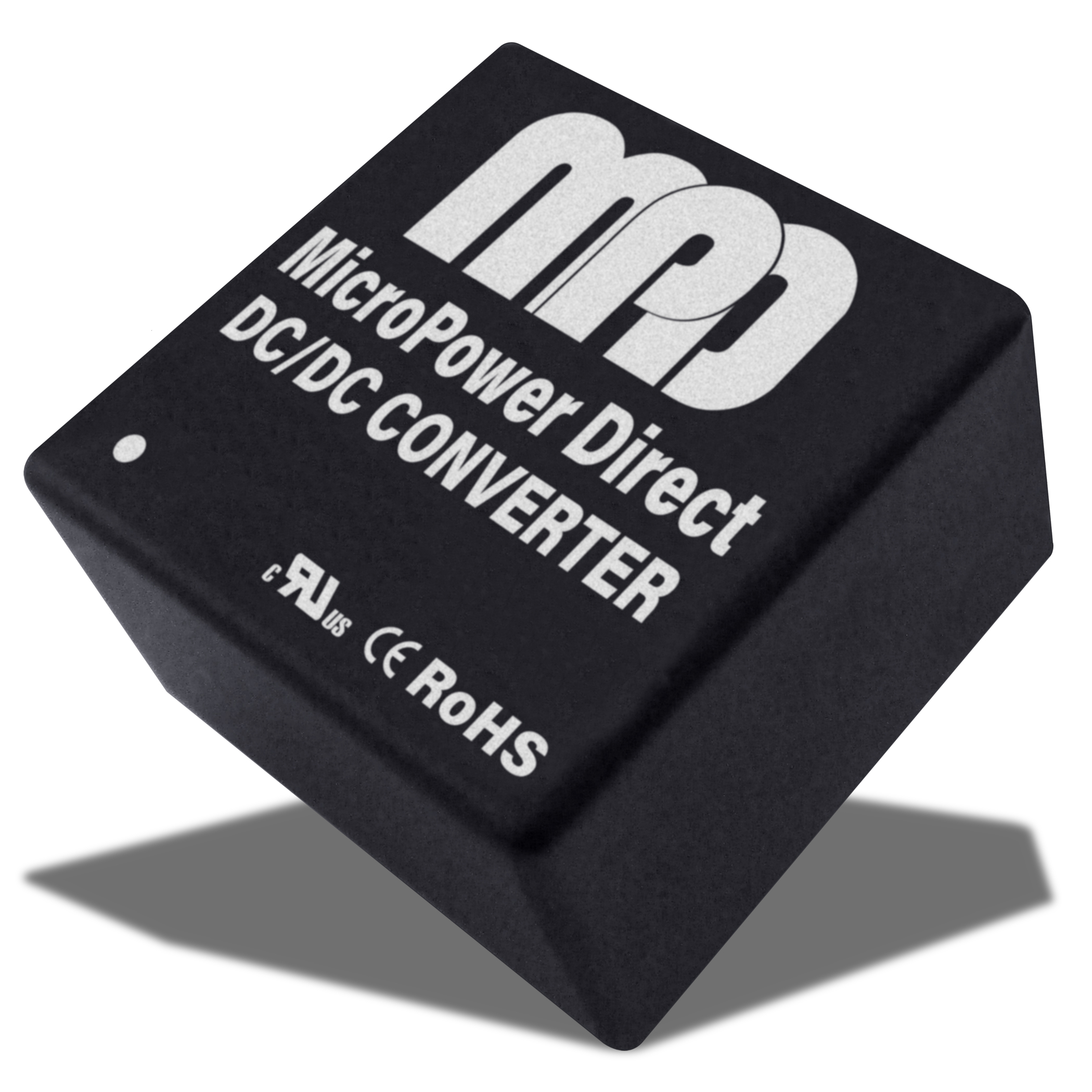

MH305S-03RW

MH305S-03RW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,3W,5VIN,3.3VOUT,1.5 KVISO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MH305S-03RW

• Description：DC/DC,3W,5VIN,3.3VOUT,1.5 KVISO
• Series：MH300RW (3W)
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：10V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 4 Leads
• Size / Dimension：0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MH305S-03RW
