MHQ1005075HA1N6STD25

Fixed Inductors Overview

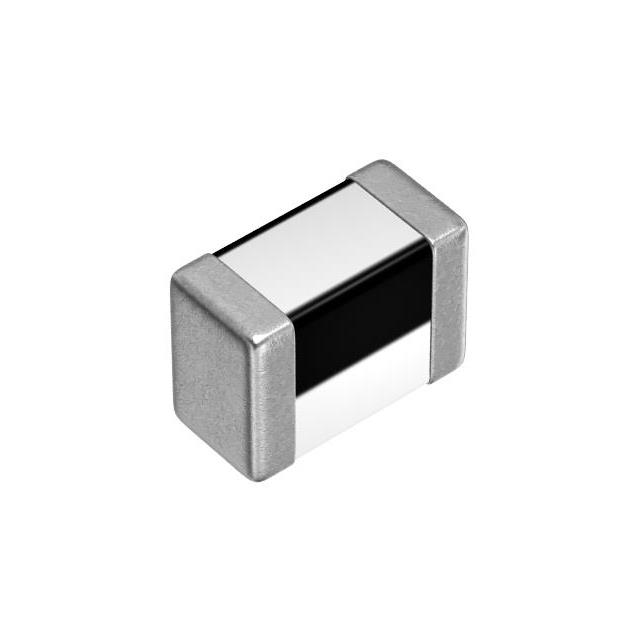

The MHQ1005075HA1N6STD25 is a shielded multilayer ceramic RF inductor manufactured by TDK. It features an inductance of 1.6 nH with a tolerance of ±0.1 nH and a maximum DC resistance of 30 mOhms. The component supports a maximum DC current of 1 A and achieves a minimum Q factor of 20 at a test frequency of 100 MHz. Its self-resolving frequency reaches 20 GHz, enabling high-frequency performance. Designed for surface mount applications, it utilizes a 0402 (1005 metric) package measuring 1.0 mm x 0.5 mm x 0.75 mm. The device operates within a temperature range of -55°C to +125°C and complies with RoHS standards.

Fixed Inductors Feature Summary

• Shielded multilayer ceramic construction minimizes electromagnetic interference
• High self-resonant frequency supports ultra-high-speed signal processing
• Compact 0402 footprint enables dense circuit board layouts

Fixed Inductors Applications

• Automotive electronic systems
• Smart phone RF circuits
• Wireless communication modules

Fixed Inductors Procurement Notes

Verify the complete part number against official TDK documentation to ensure correct inductance value and tolerance specifications. Confirm that the required shielding characteristics and thermal operating range align with the target application environment. Check for specific packaging options such as cut tape or reel availability through authorized distributors. Ensure compliance with regional regulatory requirements including RoHS directives before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring precise low-inductance values for high-frequency signal integrity. The shielded design is suitable for noise-sensitive environments where electromagnetic compatibility is critical. Consider the 1 A current rating and 30 mOhm resistance for power handling capabilities. The wide temperature range makes it appropriate for automotive and industrial applications demanding reliability under varying thermal conditions.

Fixed Inductors Part Context

This component belongs to the TDK MHQ series of RF inductors, which are engineered for high-frequency applications. The series offers various inductance values in compact surface-mount packages. These inductors utilize advanced multilayer ceramic technology to provide stable electrical performance. They are widely used in mobile devices and automotive electronics where space constraints and signal purity are paramount design considerations.

Fixed Inductors Replacement Considerations

Consult TDK's official substitution guide for equivalent parts within the MHQ series. Verify that alternative components match the 1.6 nH inductance, 30 mOhm DCR, and 0402 package dimensions. Ensure the substitute maintains the same shielding type and self-resonant frequency characteristics to preserve circuit performance.
