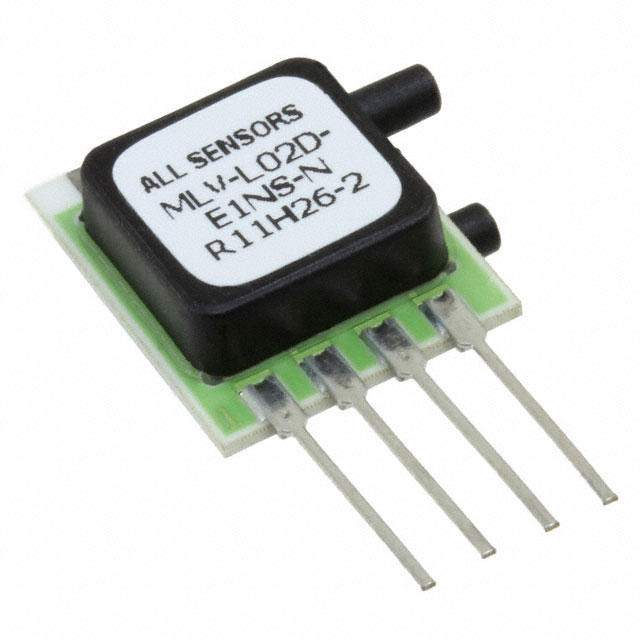

MLV-L02D-E1NS-N

$51.59

Description：SENSOR 0.07PSID 0.08" .01V 4SIP
Series：MLV
Mfr：Amphenol All Sensors Corporation
Package：Bulk

SKU:ba26d811c65f Category: Pressure Sensors, Transducers Brand: Amphenol All Sensors Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MLV-L02D-E1NS-N is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Amphenol All Sensors Corporation. Its product description is SENSOR 0.07PSID 0.08" .01V 4SIP. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for MLV-L02D-E1NS-N

Description：SENSOR 0.07PSID 0.08" .01V 4SIP
Series：MLV
Mfr：Amphenol All Sensors Corporation
Package：Bulk
Applications：Board Mount
Pressure Type：Differential
Operating Pressure：±0.07PSI (±0.5kPa)
Output Type：Wheatstone Bridge
Output：0 mV ~ 10 mV (5V)
Accuracy：±0.3%
Voltage - Supply：5V
Port Size：Male - 0.08" (2.04mm) Tube, Dual
Port Style：Barbless
Features：Temperature Compensated
Termination Style：PC Pin
Maximum Pressure：±3.61PSI (±24.92kPa)
Operating Temperature：-25°C ~ 85°C
Mounting Type：Through Hole
Package / Case：4-SIP, Dual Ports, Same Side
Supplier Device Package：4-SIP
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for MLV-L02D-E1NS-N

MLV-L02D-E1NS-N

Pressure Sensors Transducers Overview

The Amphenol All Sensors MLV-L02D-E1NS-N is a board mount differential pressure sensor from the MLV series. It features a Wheatstone bridge output with a range of -2 to 2 inches of water column (±0.5 kPa). The device operates at 12 V and provides an output signal of 0 mV to 10 mV at 5 V excitation. It utilizes a male tube interface with dual ports on the same side, packaged in a 4-pin SIP configuration.

Pressure Sensors Transducers Feature Summary

Provides high output signal at low operating voltage
Compensated for temperature stability across operational range
Barbless male tube connection for secure fitting

Pressure Sensors Transducers Applications

HVAC system monitoring
Medical gas flow measurement
Low-pressure differential detection

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized channels due to limited availability. Confirm mechanical fit and electrical compatibility with target circuitry before integration. Review datasheet specifications for thermal and pressure limits to ensure reliable operation within the intended application environment.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring precise differential pressure measurement in compact spaces. The low voltage operation and compensated output make it suitable for sensitive electronic systems. Ensure the required pressure range aligns with the ±2 inch H2O specification.

Pressure Sensors Transducers Part Context

This component belongs to the MLV series of low voltage pressure sensors designed for board mounting. It offers a compact solution for measuring small pressure differences in various industrial and commercial settings. The series is known for its reliability and accuracy in demanding environments.

Pressure Sensors Transducers Replacement Considerations

MLV-L02D-E1ND-N: Similar differential sensor with opposite port orientation. MLV-L02D-A6DDR-N: Alternative variant with different port configuration and lead style. Verify pinout and mechanical dimensions when substituting.
