MLV-L10D-E1NS-N

Pressure Sensors Transducers Overview

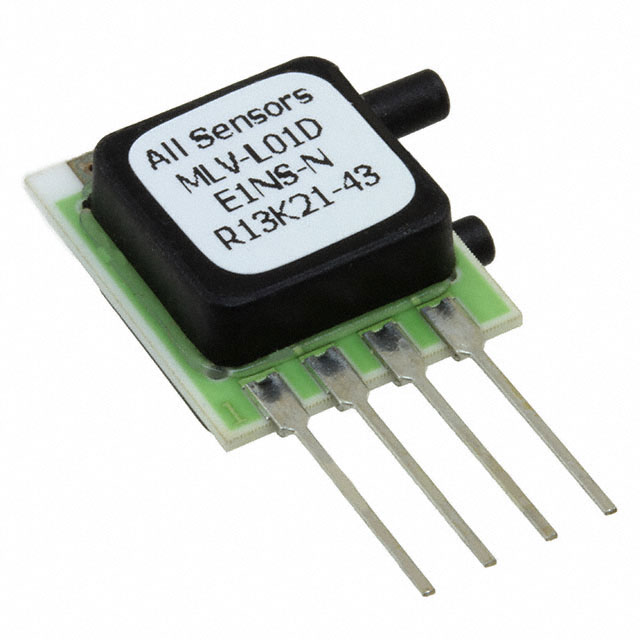

The MLV-L10D-E1NS-N is a board mount differential pressure sensor from the Amphenol All Sensors MLV series. It features a 4-SIP package with dual ports positioned on the same side. The device operates within a pressure range of -10 to +10 inches of water column (inH2O). It requires a supply voltage of 12 VDC and functions reliably across an operating temperature range of -25°C to +85°C.

Pressure Sensors Transducers Feature Summary

• Provides differential pressure measurement capability for low-pressure applications
• Features a surface-mount SIP package with dual ports aligned on the same side
• Operates using a standard 12 VDC power supply

Pressure Sensors Transducers Applications

• HVAC system monitoring
• Cleanroom environment control
• Medical device airflow sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure compatibility with required port styles and lead types. Confirm that the 12 VDC supply requirement aligns with the target circuit design. Check current availability status as distribution may vary by region. Ensure RoHS compliance documentation is obtained prior to integration into regulated products.

Pressure Sensors Transducers Selection Notes

Select this component when a differential sensor with same-side dual ports is required for space-constrained designs. The 12 VDC operation distinguishes it from 5 V variants in the MLV family. Consider the -25°C to +85°C temperature range for environmental suitability. Evaluate the 4-SIP package footprint against PCB layout constraints before finalizing the selection.

Pressure Sensors Transducers Part Context

This part belongs to the MLV series of board mount pressure sensors manufactured by Amphenol All Sensors. The series offers various configurations including different pressure ranges, supply voltages, and port arrangements. The MLV-L10D-E1NS-N specifically addresses applications requiring 10 inH2O differential measurement with a 12 VDC interface.

Pressure Sensors Transducers Replacement Considerations

Consult official substitution lists for direct replacements. Verify pinout compatibility and electrical specifications if considering alternative models within the MLV series or other manufacturers' offerings.
