MP07724

Oscillators Overview

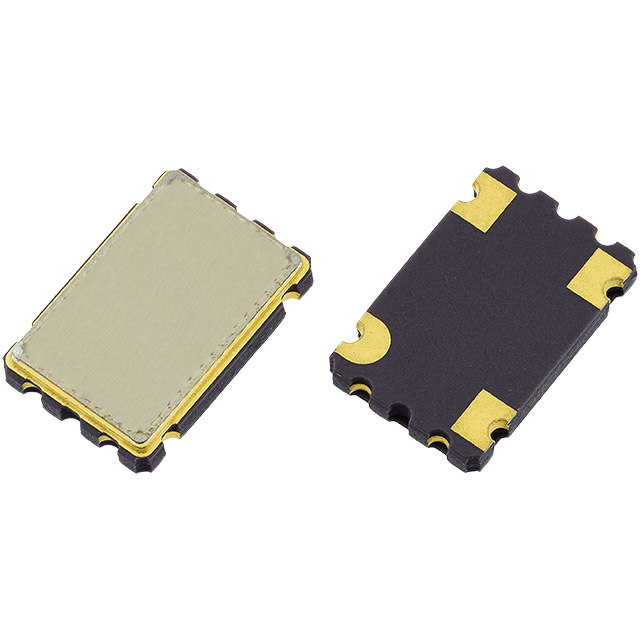

MP07724 is a CMOS output clock oscillator manufactured by Golledge Electronics Ltd. It operates at a nominal frequency of 49.152 MHz and supports a supply voltage of 3.3 V. The device features an enable/disable control function and is housed in a 4-SMD, No Lead package. It complies with RoHS standards and exhibits a frequency stability of ±25 ppm across the operating temperature range.

Oscillators Feature Summary

• CMOS logic output interface
• Integrated enable and disable functionality
• High frequency stability of ±25 ppm

Oscillators Applications

• General purpose digital timing circuits
• Embedded system clock generation
• Data communication interfaces

Oscillators Procurement Notes

Verify that the specific part number MP07724 corresponds to the 49.152 MHz variant with CMOS output and 3.3V operation. Confirm the package type is 4-SMD, No Lead. Ensure the supplier provides documentation confirming the ±25 ppm stability specification and RoHS compliance status for this specific model.

Oscillators Selection Notes

Select this component when a standard CMOS clock source is required at approximately 49 MHz. The ±25 ppm stability is suitable for general digital applications. The enable/disable feature allows for power management. Verify compatibility with the target circuit's voltage levels and load requirements before integration.

Oscillators Part Context

This oscillator belongs to the Golledge Electronics product line of surface-mount timing devices. It utilizes standard CMOS technology for signal generation. The 4-SMD form factor facilitates automated assembly in compact electronic designs requiring precise clock signals.

Oscillators Replacement Considerations

Cross-reference with other 49.152 MHz CMOS oscillators from Golledge or alternative manufacturers. Ensure replacement parts match the 3.3V supply requirement, 4-SMD package dimensions, and ±25 ppm stability specifications.
