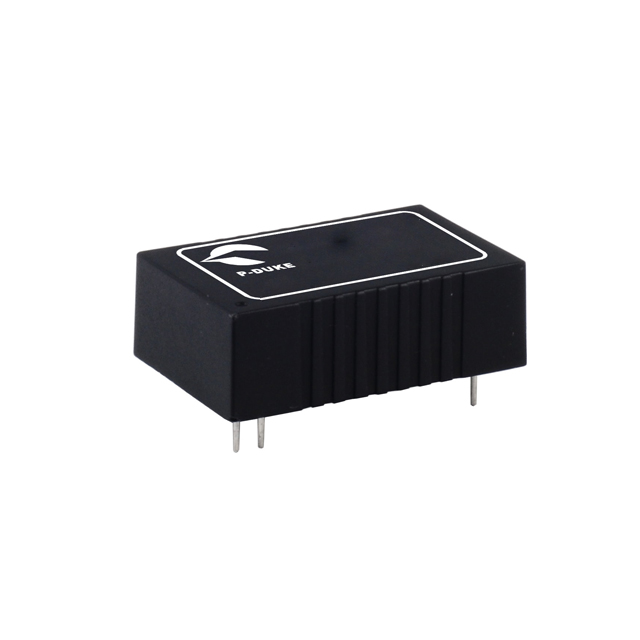

MPP06-05S05A

MPP06-05S05A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPP06-05S05A

• Description：DC DC CONVERTER 5V 6W
• Series：MPP06 (6W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.2A
• Power (Watts)：6 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 5 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, FCC
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MPP06-05S05A
