MPRLF0006KG0000SC

Pressure Sensors Transducers Overview

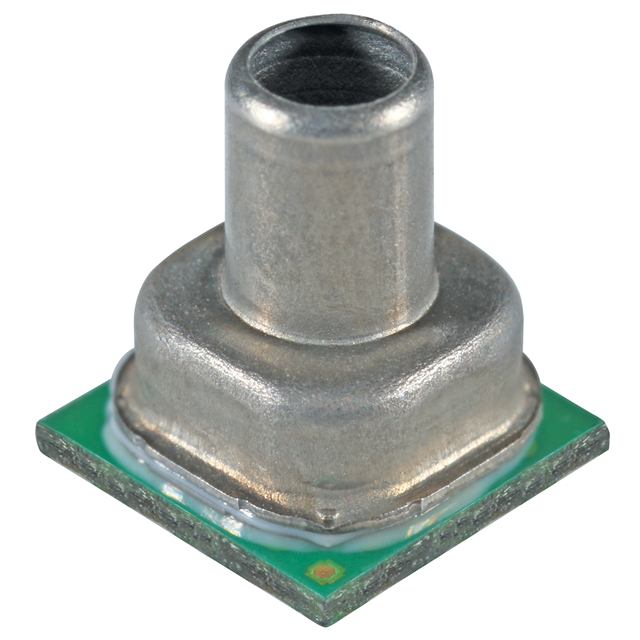

The MPRLF0006KG0000SC is a Honeywell MPR series digital gauge pressure sensor designed for board mounting. It features an operating pressure range of 0 to 0.87 PSI (0 to 6 kPa) and delivers a 24-bit digital output via an SPI interface. The device operates on a supply voltage between 1.8 V and 3.6 V, with a typical nominal voltage of 3.3 V. It provides amplified and temperature-compensated signals within a -40°C to +85°C operating temperature range. The component utilizes an SMD termination style and includes a 2.5 mm male port for pressure connection.

Pressure Sensors Transducers Feature Summary

• Delivers high-resolution 24-bit digital data through a standard SPI interface
• Integrates onboard signal amplification and temperature compensation
• Engineered for low-voltage operation suitable for battery-powered systems

Pressure Sensors Transducers Applications

• Automotive tire pressure monitoring systems
• Aerospace cabin and environmental control monitoring
• Industrial automation process control
• Healthcare respiratory equipment

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix configuration against official Honeywell documentation to ensure compatibility with required interface protocols and mechanical port dimensions. Confirm that the active status aligns with long-term production availability requirements. Cross-reference the absolute maximum ratings with system design limits to prevent operational failure under transient pressure conditions.

Pressure Sensors Transducers Selection Notes

Select this component when a compact, board-mount solution is required for low-pressure differential measurements. The integrated digital output simplifies PCB layout by eliminating external analog conditioning circuits. Ensure the host microcontroller supports the necessary SPI clock speeds and voltage levels for reliable communication within the specified operating temperature range.

Pressure Sensors Transducers Part Context

This model belongs to the Honeywell MPR family of silicon piezoresistive pressure sensors. These devices are engineered to provide accurate, linear pressure readings in space-constrained environments. The series is characterized by its robust construction and ability to maintain performance across wide thermal variations, making it suitable for demanding industrial and consumer applications.

Pressure Sensors Transducers Replacement Considerations

Consult official Honeywell substitution guides for verified alternative part numbers. Direct replacements must match the electrical interface, pressure range, and mechanical footprint to ensure seamless integration without redesigning the host circuit board or pressure manifold.
